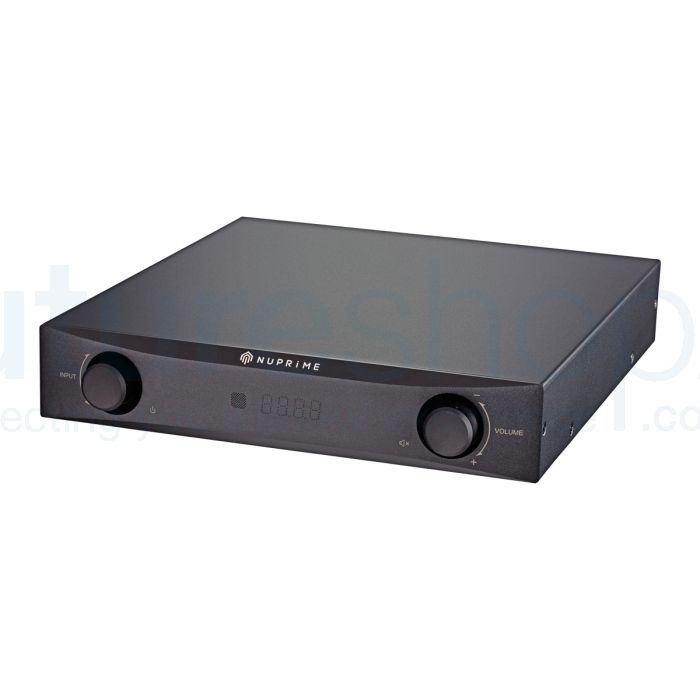

NuPrime DAC-9SE DAC & Pre-Amp

£995.00 £829.17
SKU
DAC-9SE
Free UK Delivery
24 Months
New
3 - 5 Days
what's this?

Please select the desired colour.

what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The DAC-9SE by NuPrime represents quality and convenience, containing a high-end DAC and built-in pre-amp/headphone amp. Featuring USB-B, digital coaxial, optical, I2S HDMI, analogue RCA and Blutooth or WiFi inputs, this versatile equipment is compatible with almost any source. It is also capable of carrying both S/PDIF and 5V power over just a single, standard USB-A to micro-USB cable.

NuPrime DAC-9SE DAC & Pre-Amp



The DAC-9SE by NuPrime represents quality and convenience, containing a high-end DAC and built-in pre-amp/headphone amp. Featuring USB-B, digital coaxial, optical, I2S HDMI, analogue RCA and Blutooth or WiFi inputs, this versatile equipment is compatible with almost any source. It is also capable of carrying both S/PDIF and 5V power over just a single, standard USB-A to micro-USB cable.



What NuPrime say

A Reference Class Preamp

To meet the requirement of customers who want to eliminate extra components in their system, a high-end preamp capable of driving the power amplifier directly is an essential part of the design. The DAC-9SE includes features borrowed from traditional high-end preamps:

  • Analogue volume control design using a low noise and low distortion resistance ladder circuit similar to switch-resistor network.
  • Individually adjustable volume on each input for precise source level matching.
  • Volume adjustment in 99 precise, 0.5dB increments.



The Heart

As the heart of an audio system, the DAC-9SE supports an extensive number of inputs and formats. Utilizing one of the world’s best performing 32-bit audio DACs, the AK4493, EQ is only a first step for designing the ultimate DAC. State-of-the-art solutions, readily available to all vendors, along with the experience and proprietary know-how in creating many Editor’s Choice and Product of The Year award-winning products elevate the NuPrime DAC-9SE well above the competition.



Power Circuit

The AC hum is kept to a minimum by using a low noise power supply with antivibration treatment. The rest of the onboard power circuit is designed to minimize noise as well.



Using Bluetooth and WiFi Audio Receivers and Dongles

NuPrime defined a USB Type-A port to carry S/PDIF data and 5V power for connecting to an external wireless audio receiver using just one standard USB cable. The NuPrime Omnia WR-1, Bluetooth dongle BT-9, and D-Stream Audio Primo HD (24-bit/192kHz) wireless receivers have a micro USB port that is compatible this specification. This allows a standard off-the-shelf USB-A to micro USB cable to be used for power for the receiver as well as wireless audio data transfer in S/PDIF format.

The NuPrime Omnia WR-1, Bluetooth dongle BT-9, and D-Stream Audio Primo HD (24-bit/192kHz) wireless receivers have a micro USB port that is compatible this specification. This allows a standard off-the-shelf USB-A to micro USB cable to be used for power for the receiver as well as wireless audio data transfer in S/PDIF format.



Features

  • NuPrime SRC IC chip (co-developed with IC vendor) provides DSP processing where Input signals are up-sampled to mega hertz before down converted to the targeted sampling rate with ultra-low jitter and distortion.
  • AKM Newest Generation: High Sound Quality Premium 32-bit Stereo DAC (AK4493 EQ). State-of-the-art DAC with warmer sonic characteristics, supporting USB PCM 384, I2S PCM 768, and DSD256.
  • A proprietary NuPrime implementation that is also capable of decoding DoP formats via coaxial and optical inputs (to support NuPrime Omnia portable device that are able to output DoP stream in addition to S/PDIF).
  • NuPrime vibration-free isolation feet (patent pending*).
  • Extension port for Bluetooth dongle and WiFi audio streaming (optional).
  • Full microprocessor control with memory retention.
  • Five digital inputs and one stereo input for complete system flexibility.
  • Supports DSD native playback by ASIO2.1 and DoP method.
  • Ultra-low-noise JFETs in the input stage for the lowest possible noise floor.
  • Volume adjustment in 99 precise 0.5dB increments.
  • Analogue volume control design using a low noise and low distortion resistance ladder circuit similar to switch-resistor network. See DAC FAQ for more information.
  • Individually adjustable volume on each input for precise level matching of sources.
  • Exclusive driver software for Windows. Standard driver software for Mac.
  • Asynchronous transfer mode.
  • Very low power consumption on Standby Mode.



Specification

  • Inputs:
    • 1 x USB PCM/DSD Digital (PCM up to 384kHz & DSD up to DSD256)
    • 1 x Coaxial Digital S/PDIF (PCM up to 768KHz supporting DoP format DSD256)
    • 1 x Optical Digital S/PDIF (PCM up to 192KHz supporting DoP format DSD64)
    • 1 x Bluetooth or WiFi receiver module (optional)
    • 1 x IIS/DSD HDMI connector (PCM 768KHz/32Bit and DSD 256 data streams)
    • 1 x Analog Stereo RCA
  • Outputs:
    • 1 pair of stereo RCA out: 4Vrms
    • 1 x pair of stereo XLR balanced out: 8 Vrms
    • 1 x Optical S/DPIF out (PCM up to 192KHz supporting DoP format DSD64)
  • Frequency response: 20 Hz – 20 KHz / ±0.3 dB
  • SNR: > 110 dB
  • THD+N: < 0.0005%
  • Dimensions: 235 mm W x 281 mm D x 55 mm H (including feet)
  • Weight: 2.5Kg
  • Worldwide AC voltage: (90VAC~130VAC // 210VAC~ 250VAC) with voltage select switch
  • AC Fuse: Slow-blow, 2.5A, 250VA
  • Available in black and silver anodized aluminium finish.

Note: DAC-9SE does not guarantee that all IIS/DSD sources will operate and be compatible due to the wide variety of brands and custom specs.



About NuPrime

Nu-Prime Audio was founded in 2014 by Jason Lim, cofounder of NuForce, who is committed to design, engineering, and excellence. With a team of talented engineers, Nu-Prime has quickly established itself as a top player in the industry. Their high-end amplifiers and preamps, DACs and headphone amps, streamers, ethernet switches, and power supplies are pushing the boundaries of audio technology.

At Nu-Prime, the journey to audio perfection begins with a vertically integrated manufacturing process. Every step from conception to mass production is executed to ensure the best quality products. This dedication has been recognised by numerous audiophile magazines, solidifying Nu-Prime's reputation as a leader in the field.

Nu-Prime firmly believes that high-end audio should be accessible to all and prides itself on making expensive audio components affordable. Their design team optimises circuitry and components without compromising on the NuPrime sound signature. Each Nu-Prime product delivers a vast soundstage, lightning-fast dynamics, ultra-low distortion, and noise, allowing the music to emerge from a pristine background with intricate details and nuances intact.

Choose Nu-Prime Audio at Future Shop for the ultimate audio experience. Embrace their classic and elegant designs, immerse yourself in their signature soundstage, and witness the wide, lightning-fast dynamics that bring your music to life. With Nu-Prime, you can expect nothing less than a pristine audio experience where every delicate detail and nuance is preserved.





  • Inputs:
    • 1 x USB PCM/DSD Digital (PCM up to 384kHz & DSD up to DSD256)
    • 1 x Coaxial Digital S/PDIF (PCM up to 768KHz supporting DoP format DSD256)
    • 1 x Optical Digital S/PDIF (PCM up to 192KHz supporting DoP format DSD64)
    • 1 x Bluetooth or WiFi receiver module (optional)
    • 1 x IIS/DSD HDMI connector (PCM 768KHz/32Bit and DSD 256 data streams)
    • 1 x Analog Stereo RCA
  • Outputs:
    • 1 pair of stereo RCA out: 4Vrms
    • 1 x pair of stereo XLR balanced out: 8 Vrms
    • 1 x Optical S/DPIF out (PCM up to 192KHz supporting DoP format DSD64)
  • Frequency response: 20 Hz – 20 KHz / ±0.3 dB
  • SNR: > 110 dB
  • THD+N: < 0.0005%
  • Dimensions: 235 mm W x 281 mm D x 55 mm H (including feet)
  • Weight: 2.5Kg
  • Worldwide AC voltage: (90VAC~130VAC // 210VAC~ 250VAC) with voltage select switch
  • AC Fuse: Slow-blow, 2.5A, 250VA
  • Available in black and silver anodized aluminium finish.

Note: DAC-9SE does not guarantee that all IIS/DSD sources will operate and be compatible due to the wide variety of brands and custom specs.
