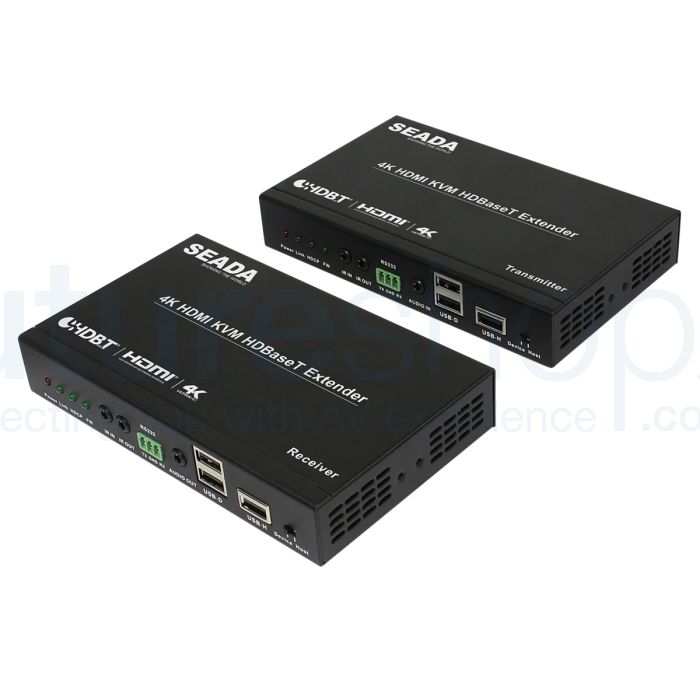

SEADA HBT100UB – HDMI USB KVM Extender over Cat5e/Cat6(HDBaseT)
Extend your HDMI signal up to 328 feet (100 meters) with this HDMI USB KVM Extender. Designed for high-performance transmission, this device converts HDMI signals into standard HDBaseT, allowing them to travel over CAT5e/CAT6/CAT7 cables without loss of quality. Ideal for professional setups, it supports bidirectional IR control and RS232 signals, providing flexible remote control and integration with other control systems. This extender features LAN serving and external digital and analog audio connections, enabling seamless audio integration with your setup.
With USB host support and two USB device ports, it offers full KVM functionality, allowing you to operate the source device from the remote sink side or vice versa, even when devices are located up to 328 feet apart. Whether you're setting up a conference room, control center, or remote workstation, this HDMI USB KVM Extender is a reliable and versatile solution for long-distance video, audio, and USB transmission.
Key Features
- Fully compliant with HDMI 1.4, and compatible with HDMI 2.0 (4K2K@60Hz with YCbCr 4:2:0 ).
- 2 and DVI compatible.
- Supports HDBaseT 2.0 specification over a single CAT5e/6/7 cable up to 100m/328ft.
- Supports pass-through of HD audio formats: LPCM2/5.1/7.1 CH, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio and more.
- POE(Power Over Ethernet)function support, either TX or RX powered 24V@1A,another don’t need power form the DC jack.
- Full HD support: 1080p@60Hz@24/36/48bit/pixels.
- Supports USB 2.0 control.
- Supports external Bi-Directional SPDIF IN/OUT and available for multichannel audio.
- Supports stereo audio with PCM 2CH.
- Transfer Bidirectional Infrared control signal together with the HDMI signal.
- Transfer Bidirectional RS232 control signal together with the HDMI signal.
- Transfer Bidirectional Ethernet signal together with the HDMI signal.
Specifications
- VIdeo Bandwidth: 340MHz[10.2Gbps]
- Transmitter input ports: 1x HDMI，1×LAN，1×USB-H，1x IR in， 1×Optical(Spdif in)，1×Audio in，1×RS-232
- Transmitter output ports: 1xIR out, 1xOptical (Spdif out), 1xHDBaseT OUT, 2xUSB-D
- Receiver input ports: 1xIR in, 1xOptical (Spdif in), 1xHDBaseT IN, 1xUSB-H
- Receiver output ports: 1x HDMI, 1xLAN, 2xUSB, 1xIR out, 1x Audio out, 1xRS232,1xOptical (Spdif out)
- Power Supply: DC 24V 1A
- ESD Protection: Human-body Model：±8kV (Air-gapdischarge) , ±4kV (Contact discharge)
- Dimensions: 160(W) X 97 (D) X 28 (H)
- Weight: 450g x 2
- Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temparature: -20°C ~ 60°C / -4°F ~ 140°F
- Relative Humidity: 20~90% RH (non-condensing)
- Power Consumption: 12w
