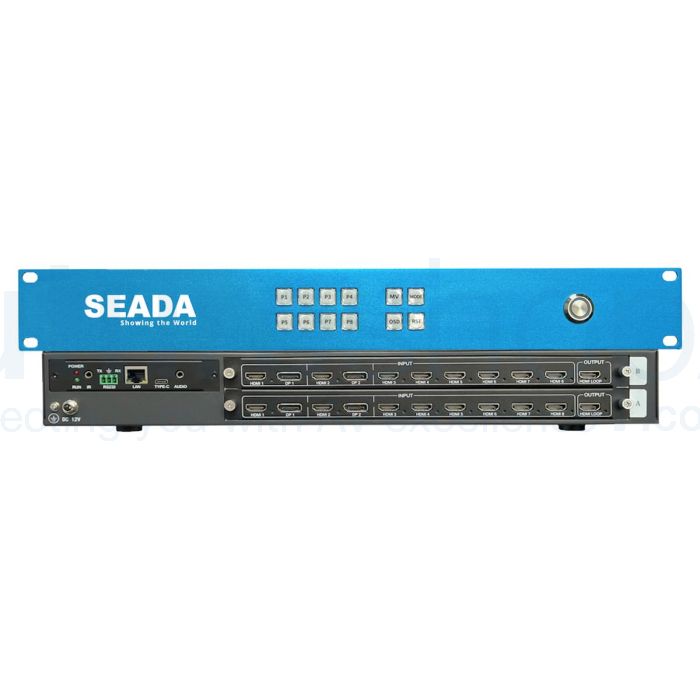

SEADA SD-MV-CM1602 4K60 16x2 Multiviewer
The SEADA SD-MV-CM1602 is a 4K60 16x2 multiviewer, also described by SEADA as a UHD video switcher, designed to gather many video sources onto a single screen at full Ultra HD resolution. Developed by UK AV specialist SEADA Technology, the SD-MV-CM1602 accepts sixteen inputs and drives two HDMI 2.0 outputs simultaneously, so one unit can supply a main display and a second monitor at the same time. Typical applications include security monitoring, broadcasting, video conferencing, industrial production and instrument monitoring.
Input capacity is split across two cards, A and B. On each card the first four inputs accept sources up to 3840 x 2160 at 60Hz, with two of those positions offering DisplayPort 1.2 as an alternative to HDMI 2.0, while the remaining four HDMI inputs handle up to 1080p60. In total the SD-MV-CM1602 provides eight 4K60-capable inputs and eight 1080p60 inputs, with HDCP 2.2 support. Output resolution is selectable between 3840 x 2160 at 60Hz, 3840 x 2160 at 30Hz and 1920 x 1080 at 60Hz, using RGB 4:4:4, YUV 4:4:4 or YUV 4:2:2 colour at 8-bit depth. Layouts are not limited to fixed templates: the screen can be divided freely on a grid of up to 15 x 15, and ten fixed split-screen modes are available for one-touch access. Changing the source in any window is seamless, with no black-screen interruption, and up to eight custom layouts can be saved and recalled from dedicated front-panel buttons.
Audio follows the HDMI path, with any one of the sixteen inputs selectable as the audio source, and a 3.5mm analogue output allows that audio to be fed to a separate amplifier or speaker system. Control options include front-panel buttons, the supplied IR remote, RS232 and TCP/IP commands, and a browser-based Web GUI where layouts are built by dragging sources into windows, with static IP or DHCP addressing. The SD-MV-CM1602 runs from a 12V 5A power adapter with a threaded locking connector, draws 50W, measures 440mm wide, 200mm deep and 60mm high, weighs 4kg, and SEADA's manual describes both desktop and rack-mounted installation.
What SEADA Technology say about the SD-MV-CM1602
The SD-MV-CM1602 is a 4K60 multiviewer with 16 inputs and 2 simultaneous HDMI outputs, able to show all sixteen sources on a single display in customised layouts. Eight inputs accept up to 4K60, four of them with an HDMI or DP option, and eight accept up to 1080P60, with output at 4K60, 4K30 or 1080P60. Layouts can be split freely on a grid of up to 15 x 15, eight presets can be stored and recalled, and inputs switch seamlessly without a black screen. Control is via buttons, remote control, RS232, Web GUI or the supplied software, and the unit offers OSD, HDMI and 3.5mm audio output, overheat protection and desktop or rack-mount installation.
4K60 16 x 2 Multiviewer
This SD-MV-CM1602 4K60 16×2 Multiviewer UHD Video Switcher was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen.
The SD-MV-CM1602 is a 4K60 multiviewer with 16 inputs and 2 outputs. It can display up to sixteen video inputs on two display devices with customised layouts at the same time. It supports seamless signal switching between different input sources and up to 8 preset layouts to be stored and recalled, providing flexible operation for a wide range of applications. The user can easily manage each input via the supplied Control Software and create any layout and position of any of the 16 inputs on a single monitor.
It is suitable for security monitoring, broadcasting, video conferencing, industrial production and instrument monitoring.
Key Features
- Supports 16 video inputs and 2 simultaneous HDMI outputs.
- Eight inputs support up to 4K60; eight inputs support up to 1080P60.
- Output resolutions: 3840 x 2160P60, 3840 x 2160P30 and 1920 x 1080P60.
- Displays up to 16 input signals on a single display.
- Arbitrary segmentation layout based on a maximum 15 x 15 grid.
- Seamless input-source switching without black-screen interruption.
- Supports OSD, HDMI audio output and 3.5mm audio separation.
- Control via buttons, remote control, RS232 and Web GUI.
- Supports custom IP address and DHCP automatic allocation.
- Up to eight preset layouts can be stored and recalled
Product Overview
SD-MV-CM1602 is a 4K60 16 inputs and 2 outputs multiviewer. It can display up to sixteen video inputs onto two display devices with cutomised layouts at the same time. It supports seamless signal switching between different input sources, providing a high user experience to meet the application needed in different scenarios. Widely used in various fields such as security monitoring, broadcasting, video conferencing, industrial production, and instrument monitoring
Product Features
- Supports 8 4K60 inputs, including 4 HDMI or DP options, and 4 HDMI inputs. And 8 1080P inputs, providing HDMI interface to ensure clear images and rich details
- Supports 4K60, 4K30, 1080P60 output, compatible with multiple display devices and resolution requirements, can be flexibly adjusted according to specific application needs and device configurations, providing more choices and adaptability
- Capable of displaying 16 input signals on a single display device, achieving multi screen display and improving work efficiency and monitoring capabilities
- Support seamless switching of input signals for each window, without blacking out, improving user experience, optimizing viewing experience, and reducing operational interference
- Support arbitrary segmentation layout, maximum 15×15 segmentation lines, flexible application
- Support OSD display, check device confidence, can be turned on or off
- Supports HDMI audio output and 3.5MM audio separation
- Support buttons, remote control, RS232, web control, intuitive control interface and operation mode, simplify the setup process
- Support custom modification of IP addresses and DHCP automatic allocation
- Provide desktop small boxes and rack mounted structures for flexible installation according to different scenarios
- Equipped with overheat protection and anti-interference design, using 18W thermal conductivity material, internal heat dissipation, ensuring long-term stable operation of the equipment, suitable for long-term use in various environments.
Specifications
General
- Brand: SEADA Technology
- Model: SD-MV-CM1602
- Product Type: 4K60 16 x 2 Multiviewer / UHD Video Switcher
- Inputs: 16 (8 x 4K60, 8 x 1080P60)
- Outputs: 2 x HDMI 2.0, simultaneous
- Windows: Up to 16 input signals on a single display
- Layout: Arbitrary segmentation on a maximum 15 x 15 grid
- Fixed Split-Screen Modes: 10
- Preset Layouts: Up to 8, stored and recalled (front panel P1 to P8)
- Switching: Seamless, without black-screen interruption
- OSD: Window number, input source, audio source and IP address, switchable on/off
- Applications: Security monitoring, broadcasting, video conferencing, industrial production, instrument monitoring
- Warranty: 2 years
Video
- Input Resolution (A IN1-4 / B IN1-4): 3840 x 2160P60
- Input Resolution (A IN5-8 / B IN5-8): 1920 x 1080P60
- Input Maximum Pixel Clock: 600MHz
- Output Resolution: 3840 x 2160P60, 3840 x 2160P30, 1920 x 1080P60
- Output Maximum Pixel Clock: 600MHz
- Colour Depth: 8-bit
- Colour Format: RGB444, YUV444, YUV422
- Interface Protocol: HDCP 2.2, HDCP 1.2
Audio
- HDMI Audio: Follow-on, audio source selectable from IN1 to IN16 or mute
- Audio Separation: 3.5mm jack output
Connectivity
- Inputs (A IN1-4 / B IN1-4): 8 x HDMI 2.0, or 4 x HDMI 2.0 and 4 x DP 1.2
- Inputs (A IN5-8 / B IN5-8): 8 x HDMI 1.3
- Video Outputs: 2 x HDMI 2.0
- Audio Output: 1 x 3.5mm jack
- LAN: 1 x RJ45
- RS232: 1 x serial port (Phoenix terminal)
- IR: 1 x 3.5mm jack for IR extension cable
- USB: 1 x USB Type-C (firmware updates)
- Grounding: 1 x grounding terminal
Control
- Control Methods: Front-panel pushbuttons, IR remote control, RS232, Web GUI
- Front Panel: P1 to P8 presets, MV, MODE, OSD, RST
- RS232 Settings: 115200 baud, 8 data bits, 1 stop bit, no parity
- Network Control: TCP/IP and UDP, Hex commands
- Network: Custom IP address and DHCP automatic allocation
- Default IP Address: 192.168.1.192
Power
- Power Supply: 12V 5A DC adapter, threaded anti-disengagement connector
- Power Consumption: 50W
Environmental
- Operating Temperature: 0 to 50°C
- Storage Temperature: -10 to 50°C
- Protection: Overheat protection and anti-interference design
Weight and Dimensions
- Dimensions: 440mm W x 60mm H x 200mm D
- Net Weight: 4 kg
- Installation: Desktop or rack mount
In the Box
- 1 x SD-MV-CM1602 Multiviewer
- 1 x 12V 5A power adapter
- 1 x CAT5E network cable, 1m
- 1 x Phoenix terminal
- 1 x Remote control
- 1 x IR
