CYP SY-XTREAM HDMI to USB 3.0 Capture & Recorder

£467.30 £389.42
SKU
CYP SY-XTREAM
Free UK Delivery
24 Months
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The SY-XTREAM by CYP is designed to connect an HDMI source to a PC in order to record media, with a maximum resolution of 1080p/60Hz for the recorded video. 4K sources are automatically scaled down to 1080p for recording purposes.

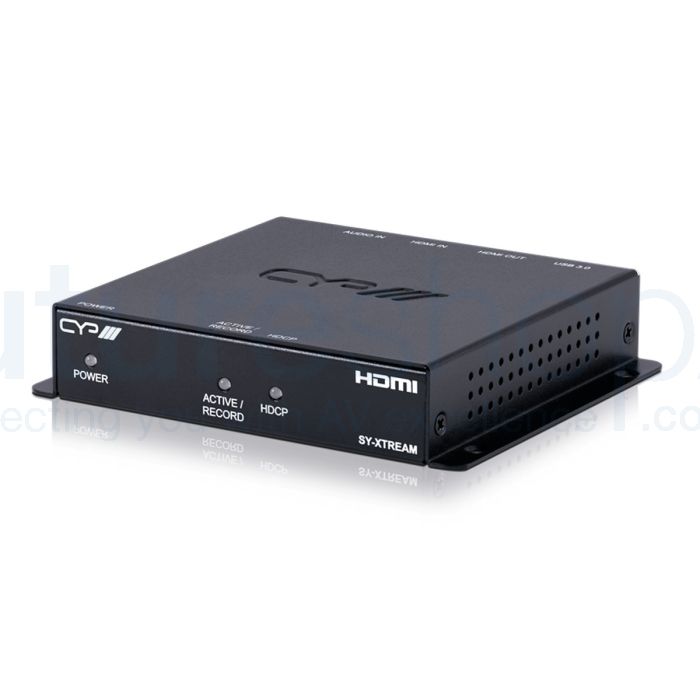

CYP SY-XTREAM HDMI to USB 3.0 Capture & Recorder



The SY-XTREAM by CYP is designed to connect an HDMI source to a PC in order to record media, with a maximum resolution of 1080p/60Hz for the recorded video. 4K sources are automatically scaled down to 1080p for recording purposes.



What CYP say



The SY-XTREAM HDMI to USB video capture recorder with HDMI bypass can support resolutions up to 18Gbps (600MHz) 4K UHD with HDR (via the bypass path) while simultaneously streaming the audio and video signal at 1080p to a USB connected PC for capture or re-broadcast. HDMI sources up to 1080p 60hz are supported for capture without scaling, while 4K sources will be automatically scaled down to 1080p. The use of a special video timing stabilization feature helps to ensure that the USB capture stream won’t lock up or drop, even if the HDMI input source is intermittent or becomes disconnected. Digital stereo audio from either HDMI (LPCM 2.0) or the 3.5mm analogue audio input will be captured with the HDMI video source and is selectable within the configuration software.

USB capture is achieved using the UAC (USB Audio Class) and UVC (USB Video Class) standards, allowing the unit to support most common video capture, chat, or streaming software, including support for the Free OBS (Open Broadcaster Software) streaming software which is available for Windows PC, macOS and Linux.

The unit is powered directly by the USB 3.0 port so an external power supply is not required (A Y-cable is required when connected via USB 2.0 in order to deliver the necessary power). Availability and access to the controllable features of the unit depend on the capture software used.



Features



  • HDMI input and output with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible
  • HDCP 2.2 and HDCP 1.x compliant
  • Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
  • Supports Deep Color input and output up to 12-bit
  • Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
  • Automatically scales 4K sources to 1080p for USB capture
  • Unit may be powered directly via USB 3.0 (When using USB 2.0, a Y-cable is required to provide additional power)
  • Supports video timing stabilization to help ensure a reliable and stable USB capture stream
  • Capturing over USB 3.0 allows uncompressed video and audio data capture (up to 1080p, LPCM 2.0)
  • Capturing over USB 2.0 requires the application of minimal MJPEG compression to the video and audio data (up to 1080p, LPCM 2.0)
  • Supports capturing 2 channel digital audio from either HDMI (LPCM 2.0) or the 3.5mm analog audio input (selectable via configuration software)
  • Compliance with the UAC (USB Audio Class) and UVC (USB Video Class) standards, allows the unit to support most common capture and video streaming software
  • Note: Availability and access to the controllable features of the unit depend on the capture software used
  • Support for the Free OBS (Open Broadcaster Software) streaming software which is available for Windows PC, macOS and Linux



Specification



  • Inputs-
    • 1x USB 3 Type B [1x Power & Data]
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
  • Outputs-
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 1x USB 3 Type B [1x Stream data Power & Data]
  • PSU- USB powered
  • Dimensions- 128mm [W] x 116mm [D] x 25mm [H]
  • Net Weight- 362g
  • Gross Weight- 580g



About CYP

CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.

The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.

From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.





  • Inputs-
    • 1x USB 3 Type B [1x Power & Data]
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
  • Outputs-
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 1x USB 3 Type B [1x Stream data Power & Data]
  • PSU- USB powered
  • Dimensions- 128mm [W] x 116mm [D] x 25mm [H]
  • Net Weight- 362g
  • Gross Weight- 580g
