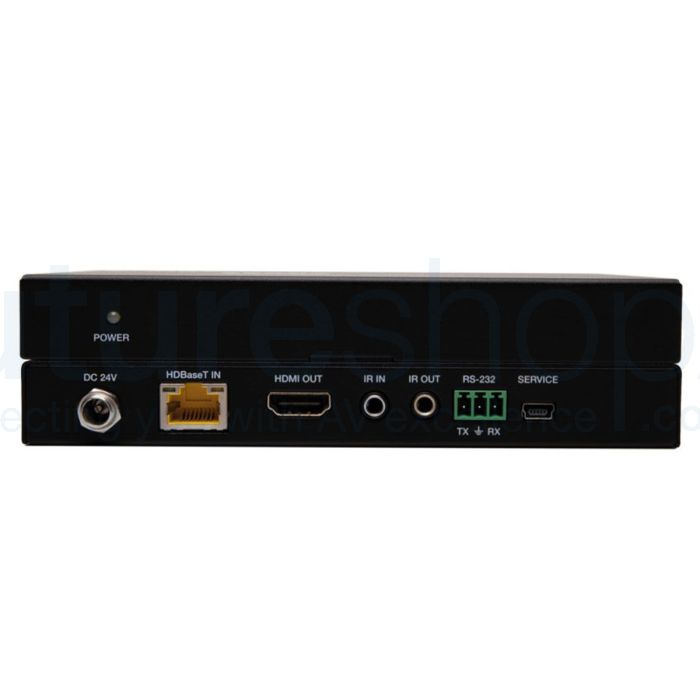

SEADA HBT100B-KIT HDMI2.0 HDBaseT Extenders
Unlock seamless 4K content distribution with the SEADA B Series Extenders (HBT70B-KIT and HBT100B-KIT), engineered to deliver HDMI 2.0 signals at 4K60Hz 4:4:4 with an impressive 18Gbps bandwidth. Utilizing HDBaseT technology, these extenders transmit high-resolution video over long distances without latency, making them ideal for demanding AV environments such as conference rooms, control centres, and residential AV setups. Supporting HDR and HDCP2.2, the extenders ensure compatibility with the latest 4K media and playback devices. Both models offer bi-directional IR and RS232 passthrough, giving users flexible control options. An integrated Ethernet port adds LAN serving capabilities, enhancing connectivity across your AV infrastructure. With Power over Cat (PoC) functionality, a single power supply connected via a secure, lockable DC jack can power both transmitter and receiver units. This significantly reduces cable clutter and simplifies installation in tight spaces or concealed areas. Whether for professional or home use, the SEADA B Series Extenders offer reliable, high-performance video and control signal transmission for next-gen AV systems.
Key Features
- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
- Video resolutions up to 4K2K@50/60Hz (YUV444)
- 10bits HDR (High Dynamic Range) pass through
- Supports HDMI High Bit Rate (HBR) audio pass through
- Supports CEC bypass
- Supports HDMI Audio Formats of LPCM
- 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby
- Digital+, Dolby TrueHD, DTS-HD Master
- Audio, Dolby Atmos, DTS:X
- POC (Power Over Cable) function is supported, either TX or RX is powered by24V@1A power supply, the other unit does not need a power supply from the DC jack.
- POC Power consumption is less than 10W.
- Transfer Bidirectional Infrared control signal together with the HDMI signal.
- Transfer Bidirectional RS232 control signal together with the HDMI signal.
- Compatible with SEADA SW video wall controllers
Specifications
- DIMENSIONS(W*D*H) (MM): 157 x 90 x 20
- INPUT: HDMI 2.0b with HDCP 2.2 and HDCP 1.4 supported
- VIDEO BANDWIDTH: 18 GBPS
- VIDEO RESOLUTIONS:Up to 4K2K@50/60Hz (YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
- COLOUR SPACE: RBG, YCbCr 4:4:4, YCbCr 4:2:2
- COLOUR DEPTH: 10-bit, 12-bit
- HDMI AUDIO FORMATS (PASS-THROUGH) LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
- POWER SUPPLY Input: AC100 – 240V 50/60Hz Output: DC 24V/1A
- OPERATION TEMPERATURE: 32 – 104°F / 0 – 40°C
- STORAGE TEMPERATURE: -4 – 140°F / -20 – 60°C
- RELATIVE HUMIDITY: 20 – 90% no condensation
- COOLING: Passive Cooling
- WARRANTY: 2 years
