Converters & Scalers
Signal converters between HDMI, DisplayPort, DVI, VGA and SDI, plus control processors, IR extenders, EDID tools and test equipment.
Shop by Brand
Converters, control and commissioning
Two related jobs sit on this page. Converters change one video format into another where the equipment cannot talk directly. Control and test hardware makes an installed system usable and diagnosable once it is in.
Converters are active devices, not adaptors. Converting VGA or DVI to HDMI involves real processing, and the result is limited by the source resolution rather than improved by the conversion. Scalers change resolution deliberately, which is useful for putting a legacy source onto a modern display, or for locking a matrix output to one resolution so every display receives the same signal.
On the control side, EDID management tools are the ones that save installations. Being able to read, store and force EDID resolves most handshake failures, where a display negotiates a lower specification than it should or nothing appears at all. IR extenders, control processors and signal generators cover the rest of commissioning. If you are troubleshooting an existing system, tell us the symptom and the signal chain and we will help narrow it down.
-
£270.82Ex. VATThe CR-CS2 is a simple Control System for a wide variety of connected devices. It has 16 user-defined macro events stored within the unit activated via the WebGUI or by telnet, eight of which can also be activated by the external trigger connections. -
£877.29Ex. VAT
The DS-MSC14-4K22 by CYP is designed for custom video installations, and is capable of supporting up to 4 1080p displays. Multiple units can support up to 64 displays in an 8x8 configuration.
-
CYP
CYP IP-CS7 IP System Controller & ConfiguratorSKU: CYP IP-CS7 IP System Controller & Configurator
£876.66Ex. VAT -
CYP
CYP IP-XTREAM-R Stand alone streaming and recording system with HDMI/VGA in & HDMI monitor outSKU: CYP IP-XTREAM-R
£460.82Ex. VATThe IP-XTREAM-R system enables online broadcasting of live video, with a locally stored archive, an easy and simple process. Video content up to full 4K is supported and is automatically scaled to a resolution that is more appropriate for efficient streaming.
-
£199.99Ex. VATThe RE-EDID-4K22 is designed to manage and manipulate the HDMI/DVI EDID information provided to a HDMI source device by a connected display -
£999.99Ex. VATThe SDV-CS8 by CYP is an efficient way of controlling multiple SDVoE extender within the same network, using the WebGUI to configure the transmitters, receivers or transceivers. -
£249.99Ex. VATThis SY-12H-4K22 is designed to upscale 1080p signals into 4K UHD (18Gbps) or downscale 4K UHD (18Gbps) signals into 1080p with synchronized digital audio output. The user-friendly interface provides simple control of the unit while viewing the OSD directly on the HDMI outputs. -
£386.66Ex. VATThe SY-XTREAM by CYP is designed to connect an HDMI source to a PC in order to record media, with a maximum resolution of 1080p/60Hz for the recorded video. 4K sources are automatically scaled down to 1080p for recording purposes.
-
£526.66Ex. VATThe XA-3P by CYP is designed to analyse and test the HDMI Signal Path on HDMI cable.
-
SALEGefen
Gefen EXT-UHD600A-VWC-14 4K Ultra HD 600 MHz 1×4 Video Wall Controller w/ Audio De-EmbedderSKU: EXT-UHD600A-VWC-14
£2,670.30 £2,967.00Ex. VAT ✓ Save £296.70Gefen’s 4K Ultra HD 600 MHz Video Wall Controller is the perfect solution for entertainment and digital signage applications in retail outlets, clubs, trade shows, control centers, building lobbies, and other venues where a large, high quality 4K picture is required. It accepts a single 4K 60 Hz 4:4:4 (18 Gbps, 600 MHz TMDS clock) HDCP 2.2 4K Ultra HD 600 MHz 1x4 Video Wall Controller with Audio De-Embedder or 1.4 compliant HDMI source, and using its advanced video processing technology divides the picture pixel by pixel and without any extrapolation or approximation, over four equally-sized 1080p Full HD displays. -
SALEGefen

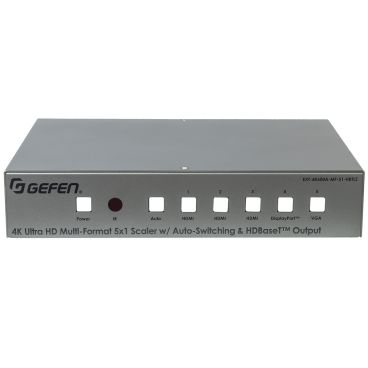

Gefen EXT-4K600A-MF-51-HBTLS 4K Ultra HD 600 MHz Multi-Format 5×1 ScalerSKU: EXT-4K600A-MF-51-HBTLS
£1,728.00 £1,920.00Ex. VAT ✓ Save £192.00The EXT-4K600A-MF-51-HBTLS is a 5x1 Presentation Switcher with three 4K 600 MHz HDMI, one DisplayPort™ 1.2, one VGA, five independently assignable stereo analog audio, & one balanced/unbalanced microphone/ line input. The latter features switchable 48V Phantom Power and Ducking. The five video inputs, along with their embedded or assigned audio, can be switched automatically or manually. Control options include the front panel, hand-held IR remote with On-Screen- Display, electrical IR, RS-232, Telnet/UDP, web server interface, & contact closure. The split HDMI and HDBaseT™ outputs feature a scaler, configurable to 3840 x 2160, 30 Hz, 4:4:4. They feed a local and a remote display simultaneously, adding flexibility in larger presentation environments. -
£651.97Ex. VATThe CR-UDC1 is a powerful and flexible solution for controlling a wide range of controllable equipment within same local network. With this unit connected to the local network, natively supported devices can be automatically detected, monitored, and controlled via a convenient unified WebGUI interface with the ability to manually add control functionality for 3rd party devices as well.
