Matrix & Switchers
HDMI matrix units, switchers, HDBaseT matrices and multi-viewers in 2x2 through to 16x16 configurations, from Blustream, CYP, Gefen and SEADA.
Shop by Brand
Sizing a matrix correctly
A matrix lets any source reach any display independently. A switcher selects between sources for a single display. If two rooms need to watch different things at the same time, you need a matrix, and no amount of splitting will substitute for one.
Size on inputs and outputs, then add headroom. A 4x4 with all four inputs used leaves nothing for the next source you buy, and expanding later usually means replacing the unit rather than adding to it. HDBaseT matrices send each output over Cat6 or Cat6a to a receiver at the display, which is how most whole house systems are wired.
Check bandwidth support against what the sources actually output. A matrix rated for 4K at 60Hz will not pass 4K at 120Hz from a games console, and the symptom is usually a blank screen rather than a helpful error message. Confirm HDCP version support, EDID management, and whether audio is extracted at the matrix or at each receiver. Send us the room layout and source list and we will specify it.
-
Blustream
Blustream PRO16HBT70CS Custom Pro 16x16 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 40m)SKU: PRO16HBT70CS
£8,805.00Ex. VATThe pre-configured range of Custom Pro Matrix achieves new levels of both performance and flexibility. The Custom Pro PRO16HBT70CS has been designed to operate in complex and challenging AV environments.
-
Blustream
Blustream PRO16HBT100CS Custom Pro 16x16 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 70m)SKU: PRO16HBT100CS
£10,335.83Ex. VATThe pre-configured range of Custom Pro Matrix achieves new levels of both performance and flexibility. The Custom Pro PRO16HBT100CS has been designed to operate in complex and challenging AV environments.
-
Blustream
Blustream C66CS Contractor 6x6 HDBaseT™ CSC Matrix - 70m (4K up to 40m) - Special OfferSKU: C66CS
£1,715.83Ex. VATBlustream's Contractor 6x6 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The C66CS is an HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology* to deliver HDMI, Bi-directional IR and PoC up to lengths of 40m over a single CAT cable (1080p to 70m).
-
£1,915.83Ex. VATBlustream's Contractor 8x8 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The C88CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology* to deliver HDMI, Bi-directional IR and PoC up to lengths of 40m over a single CAT cable (1080p to 70m).
-
£1,880.00Ex. VATBlustream's AMF42AU is an advanced 4K 4x2 HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 multi-format presentation switcher featuring 3 x HDMI 2.0 and 1 x USB-C input to 2 x HDMI 2.0 / 1x HDBaseT™ output.
-
SALE£124.17 £176.67Ex. VAT ✓ Save £52.50Blustream's MFP31 is a portable multi-format presentation switch featuring HDMI, Mini DisplayPort™ and USB-C inputs to a single HDMI output, with manual or auto source selection.
-
Blustream
Blustream HMXL88ARC 8x8 HDBaseT™ CSC ARC Matrix - 70m (4K 60Hz 4:4:4 up to 40m)SKU: HMXL88ARC
£2,615.00Ex. VATThe HMXL88ARC HDBaseT™ Matrix delivers new levels of advanced audio integration into our Essential range of 4K video matrix solutions. The HMXL88ARC is an 8x8 HDMI 2.0 4K 60Hz 4:4:4 matrix that uses CSC (Colour Space Conversion) technology to deliver 18Gbps HDMI over distances of up to 40m (1080p to 70m).
-
Blustream
Blustream HMXL66ARC 6x6 HDBaseT™ CSC ARC Matrix - 70m (4K 60Hz 4:4:4 up to 40m)SKU: HMXL66ARC
£2,314.17Ex. VATThe HMXL66ARC HDBaseT™ Matrix delivers new levels of advanced audio integration into our Essential range of 4K video matrix solutions. The HMXL66ARC is a 6x6 HDMI 2.0 4K 60Hz 4:4:4 matrix that uses CSC (Colour Space Conversion) technology to deliver 18Gbps HDMI over distances of up to 40m (1080p to 70m).
-

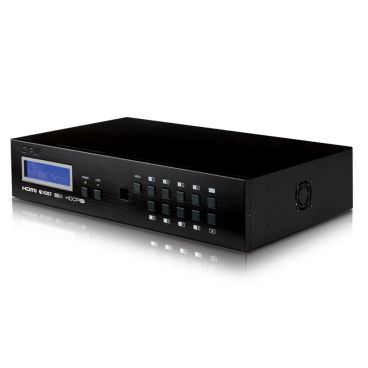

£3,258.92Ex. VATThe PU-8H8HBTPL-4K22 8 by 8 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD, HDCP 2.2) and multi-channel digital audio from 8 HDMI sources to 8 HDBaseT outputs via single CAT5e/6/7 cables up to 100m.
-
£841.08Ex. VATCYP's EL-7400V Presentation Switcher and Scaler is able to switch and scale as many as 5 AV inputs simultaneously over HDBaseT LITE and HDMI ouptuts. The HDBaseT LITE output allows you to send signals up to 60m over a CAT5e/6/7 cable, and supports analogue, digital coaxial and optical audio outputs. -
CYP
CYP EL-8300VA Advanced 4K HDMI, USB Type C, Display Port, VGA and HDBaseT Presentation SwitchSKU: CYP EL-8300VA
£1,109.99Ex. VATCYP's EL-8300VA has HDMI and HDBaseT outputs, switching and scaling across HDMI, USB-C, DisplayPort and VGA inputs, and also comes with a microphone input. The HDBaseT output is capable of delivering 4K/60 alongside audio and ethernet over up to 100m.
-
CYP
CY EL-8500VA Advanced 4K HDMI, USB Type C, VGA, and HDBaseT Presentation SwitchSKU: CY EL-8500VA
£2,089.99Ex. VATThe EL-8500VA supports 4 different video inputs (HDMI, USB-C, HDBaseT and VGA) alongside a microphone, making it an extremely versatile Presentation Switch that delivers 4K/60 .
