AV Distribution
Matrix switchers, extenders, audio integration and signal conversion for multi-room and custom install AV. Professional distribution hardware from Blustream, CYP, Gefen and SEADA.
Shop by Brand
Designing AV distribution that works
AV distribution is a design job before it is a shopping job. Get the source count, display count, distances and control method clear first, and the hardware choice usually follows without much argument.
Three questions decide most systems. How many sources need to reach how many displays, and does every display need independent access to every source? What is the longest cable run, and can it be Cat6 or does it need fibre? What audio has to come out of the video path, and where does it need to arrive? Answer those and the specification largely writes itself.
The details that cause problems later are EDID handling, HDCP version support and control integration. A system that works on day one can fail when a source is replaced with one using a newer HDCP version, so specify with some headroom. IR, RS232 and IP control all need planning at design stage rather than after the cable is in the wall. If you are specifying a system, send us the layout and we will work through it with you.
-
Blustream
Blustream HEX70CS-KIT HDBaseT™ CSC Extender Set Supporting HDMI2.0 4K60Hz 4:4:4 up to 40m (1080p up to 70m)SKU: HEX70CS-KIT
£396.67Ex. VATBlustream's HEX70CS-KIT HDMI2.0 4K60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ extender set offers market leading features and outstanding value utilising CSC technology. -
Blustream
Blustream HEX100CS-RX HDBaseT™ CSC Receiver Supporting HDMI2.0 4K60Hz 4:4:4 up to 70m (1080p up to 100m)SKU: HEX100CS-RX
£300.00Ex. VATBlustream's HEX100CS-RX HDMI2.0 4K60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ Receiver offers market leading features and outstanding value utilising CSC technology.
PLEASE NOTE THIS IS RECEIVER ONLY.
This comes without power supply.
-
Blustream
Blustream PRO88HBT70CS Custom Pro 8x8 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 40m)SKU: PRO88HBT70CS
£4,156.67Ex. VATThe PRO88HBT70CS is a HDMI2.0 4K 60Hz 4:4:4 HDCP2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoH (PoE) up to lengths of 70m over a single CAT cable (4K HDR up to 40m). -
Blustream
Blustream PRO88HBT100CS Custom Pro 8x8 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 70m)SKU: PRO88HBT100CS
£4,560.83Ex. VATThe PRO88HBT100CS is a HDMI2.0 4K 60Hz 4:4:4 HDCP2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoH (PoE) up to lengths of 100m over a single CAT cable (4K HDR up to 70m). -
SALE£174.50 £349.00Inc. VAT ✓ Save £174.501:2 HD Digital Audio Splitter allows set-top boxes, DVD players, DVRs and even computers to be connected to two devices simultaneously. Product Code - EXT-HD-142A. -
Atlona HD Distribution

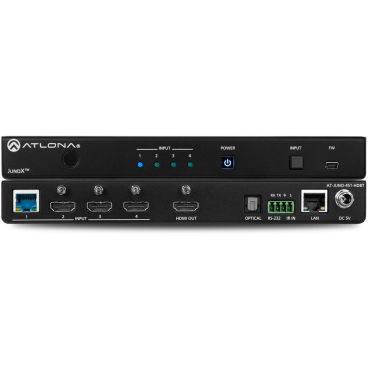

Atlona AT-JUNO-451-HDBT 4K HDR Three-Imput HDMI Switcher with HDBaseT input and Auto-SwitchingSKU: AT-JUNO-451-HDBT
£650.86Ex. VAT4×1 HDMI® and HDBaseTTM switcher 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats HDCP 2.2 compliant Automatic input selection using hot plug detect and video detection technology Delivers return audio from a TV via ARC to an optical digital audio output TCP/IP, RS-232, and IR control -
£1,182.50Ex. VATBlustream is delighted to announce the arrival of the first HDBaseT™ matrix solutions that support 4K HDR resolutions. The Custom Pro range is expanding with a host of new 4K HDR supported boards. What does Blustream mean by that? They mean that by using their advanced Colour Space Conversion the Custom Pro supports 18Gbps 60 Hz 4:4:4 (4K HDR). -
Blustream
Blustream RSU-2RU Universal 2RU Rack Shelf Unit with 4x Horizontal Blade ShelvesSKU: RSU-2RU
£84.00Ex. VATBlustream's RSU-2RU Multicast rack mount solution has been designed to complement their range of Blustream Multicast products. The shelf is designed to mount 4 x Transmitter or Receiver units and comes with all necessary mounting hardware.
-
£17.23Ex. VATThe REM44 is an optional remote for: HMXL44-KIT – 4x4 HDBaseT™ Matrix Kit HMXL44-KIT-V2 – HDCP 2.2, 4x4 HDBaseT Matrix Kit MX44AB/MX44AB-V2 – 4x4 4K HDMI Matrix with Audio Breakout and EDID Management MX42AB – 4x2 4K HDMI Matrix with Audio Breakout and RS232 Control -
£18.32Ex. VATThe REM88 is an optional remote for: HMXL88 – 8x8 HDBaseT Matrix - 6x HDBaseT & 2 HDMI Outputs HMXL88-V2 – HDCP2.2, 8x8 HDBaseT™ Matrix -
£63.33Ex. VATBlustream's PAC500AU Audio over CAT cable extender transmits analogue audio signals up to distance of 500m. This plug and play device requires no power supply making it ideal for simple installations in which analogue audio needs to be extended over long distances
-
Blustream
Blustream IP200UHD-TX IP Multicast UHD Video Transmitter over 1GB NetworkSKU: IP200UHD-TX
£435.83Ex. VATThe IP200UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that using visually lossless compression technology delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture.
