AV Distribution
Matrix switchers, extenders, audio integration and signal conversion for multi-room and custom install AV. Professional distribution hardware from Blustream, CYP, Gefen and SEADA.
Shop by Brand
Designing AV distribution that works
AV distribution is a design job before it is a shopping job. Get the source count, display count, distances and control method clear first, and the hardware choice usually follows without much argument.
Three questions decide most systems. How many sources need to reach how many displays, and does every display need independent access to every source? What is the longest cable run, and can it be Cat6 or does it need fibre? What audio has to come out of the video path, and where does it need to arrive? Answer those and the specification largely writes itself.
The details that cause problems later are EDID handling, HDCP version support and control integration. A system that works on day one can fail when a source is replaced with one using a newer HDCP version, so specify with some headroom. IR, RS232 and IP control all need planning at design stage rather than after the cable is in the wall. If you are specifying a system, send us the layout and we will work through it with you.
-
£175.82Ex. VATThe PU-USB2-KIT is a low-cost transmitter and receiver pair for USB data extension. This USB 2.0 extender kit provides a simple way to extend USB 2.0 signals over a single category cable with high quality, uncompressed, multi-application data streams of USB. This features 1 host to 4 devices, all housed in a compact housing. -
£411.67Ex. VAT
The MX44KVM is a 4x4 USB.30 KVM Matrix which allows 4 different 'peripheral' USB devices to be connected to and shared across 4 different hosts. The USB-A connections can power devices requiring up to 5V/900mA, and the RS-232 ports allow the MX44KVM to be linked to any Blustream video matrix products.
-
£526.66Ex. VATThe PUV-1660TTX is a brand new AV concept for the Commercial & Corporate channel. Presentation equipment in corporate meeting rooms can often be difficult to operate and can provide the user with challenges when connecting their source to the installed AV system. Flexible meeting rooms are also becoming more commonplace, which is where the PUV-1660TTX provides the perfect balance between ease of use and portability.
-
£365.82Ex. VATThe PUV-2200PL-TX HDMI over single CAT5e/6/7 Transmitter can send uncompressed audio/video, along with HD audio and USB, over a single run of CAT5e/6/7 cable at a distance up to 35 meters. This transmitter also features analogue audio input/output and mic input for flexible audio options. -
£310.82Ex. VATThe PUV-2200PL-RX HDMI over single CAT5e/6/7 Receiver can receive uncompressed audio/video, along with HD audio and USB, over a single run of CAT5e/6/7 cable at a distance up to 35 meters. This receiver also features analogue audio input/output and mic input for flexible audio options. Multi-control interfaces are available which includes IR, RS-232 and USB connection. This extender complies with advanced protocols of HDCP2.2 and HDMI 2.0, as well as supporting the legacy HDCP 1.x standards.
-
£363.32Ex. VATThe PUV-3050TX-UA is part of the new generation of HDBaseT 3.0 technology. This transmitter is capable of extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit or 4K HDR) video and HD audio, as well as control signals, via a single run of Cat.6a/7 cable over distances of up to 40 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, and USB 2.0. -
£394.99Ex. VATThe PUV-3050RX-UA is part of the new generation of HDBaseT 3.0 technology. This receiver is capable of extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit or 4K HDR) video and HD audio, as well as control signals, via a single run of Cat.6a/7 cable over distances of up to 40 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, and USB 2.0. -
£356.77Ex. VATThe PUV-3090RX-UEA Receiver is part of a new generation of HDBaseT 3.0 technology and supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output over both HDMI and HDBaseT. It is a great solution for extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit) video and HD audio as well as Ethernet (LAN serving) and control via a single run of Cat.6a/7 cable over distances of up to 100 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB 2.0, and 1000BaseT Ethernet. -

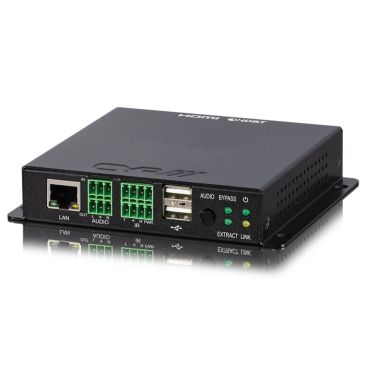

£388.49Ex. VATThe PUV-3090TX-UEA Transmitter is part of a new generation of HDBaseT 3.0 technology and supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output over both HDMI and HDBaseT. It is a great solution for extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit) video and HD audio as well as Ethernet (LAN serving) and control via a single run of Cat.6a/7 cable over distances of up to 100 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB 2.0, and 1000BaseT Ethernet. -
£571.66Ex. VATThe PUV-3150TR-UEAO 4K UHD+ HDMI over HDBaseT Transceiver uses HDBaseT 3.0, the newest generation of HDBaseT technology, and is the perfect solution for extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video with HD audio as well as Ethernet and control via a single run of Cat.6A/7 cable over distances of up to 100 meters. -
£424.16Ex. VATThe SY-XTREAM-PIP HDMI to USB video capture / recorder with HDMI bypass can support resolutions up to 18Gbps (600Mhz) 4K UHD with HDR (via the HDMI bypass pathway) while simultaneously streaming the audio and video signal at 1080p to the USB connected PC for capture and re-broadcast. Special video timing stabilisation feature helps to ensure that the USB capture stream won't lock up or drop even if the HDMI input source is intermittent or disconnected. This makes your live streaming stable and non-stop. -
£890.00Ex. VATThe Blustream IP500UHD Transceiver is a SDVoE AV over IP solution that provides the highest-quality, un-compromised 18Gbps 4K with zero latency Audio/Video extension over copper or optical fibre 10Gb Managed Networks. The IP500UHD-TZ includes support for HDMI 2.0 including distribution of HDR (High Dynamic Range), 10-bit colour content, and multi-channel HD audio signals.
