AV Distribution
Matrix switchers, extenders, audio integration and signal conversion for multi-room and custom install AV. Professional distribution hardware from Blustream, CYP, Gefen and SEADA.
Shop by Brand
Designing AV distribution that works
AV distribution is a design job before it is a shopping job. Get the source count, display count, distances and control method clear first, and the hardware choice usually follows without much argument.
Three questions decide most systems. How many sources need to reach how many displays, and does every display need independent access to every source? What is the longest cable run, and can it be Cat6 or does it need fibre? What audio has to come out of the video path, and where does it need to arrive? Answer those and the specification largely writes itself.
The details that cause problems later are EDID handling, HDCP version support and control integration. A system that works on day one can fail when a source is replaced with one using a newer HDCP version, so specify with some headroom. IR, RS232 and IP control all need planning at design stage rather than after the cable is in the wall. If you are specifying a system, send us the layout and we will work through it with you.
-
Blustream
Blustream SM11ARC Advanced HDMI 2.0 HDCP 2.3 Signal Manager with ARC Audio De-Embedder / EmbedderSKU: SM11ARC
£170.00Ex. VATThe SM11ARC HDMI 2.0 Signal Manager is engineered to resolve common HDMI distribution issues such as compatibility conflicts, HDCP 2.3, handshaking, clock stretching, and general EDID problems, especially when working with 4K content.
-
£580.00Ex. VAT
Blustream's new CMX44CS-V2 replaces the previous CMX44CS, adding Optical S/PDIF & phoenix audio breakout. The CMX44CS-V2 supports HDMI2.0 with HDCP2.2, allowing distribution of four HDMI sources to four displays. This enables all sources to be viewed as required within a matrix configuration.
-
£756.00Inc. VAT
The HSP14CS-V2 4K HDBaseT™ CSC splitter allows a single HDMI 2.0 4K 60Hz 4:4:4 source to be distributed to four simultaneous HDBaseT™ outputs, delivering exceptional flexibility for single source distribution environments. Independent downscaling on each output ensures displays limited to lower video resolutions can receive optimised video signals, while compatible screens continue to display the native 4K UHD content.
-

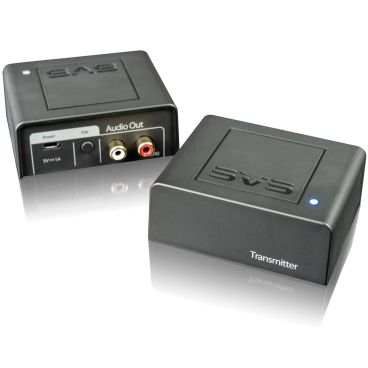

£207.50Ex. VATThe SVS SoundPath Multi-Band Wireless Audio Adapter connects subwoofers and powered speakers wirelessly, auto-switching between 2.4GHz, 5.2GHz, and 5.8GHz bands to maintain a clean signal in crowded wireless environments. -
£1,290.00Inc. VATThe Blustream WMF72-V2 is an advanced 4K wireless multi-format presentation switch supporting HDMI, USB-C, AirPlay, Miracast, and Chromecast inputs to dual HDMI outputs, with multiview presentation, built-in video scaling, dual LAN, and web-GUI control. -
From£304.99Ex. VATThe CYP CR-KP5-R is a PoE-powered wall plate keypad controller featuring four macro buttons, a rotary encoder with push button for three additional controls, RGB LED lighting, calendar-based scheduling, and control via Web GUI, Telnet, and RS-232, available in black and white. -
CYP
CYP SDV-C1H-RX – SDVoE Full 4K 10G AV over IP CAT-Based Small Form Factor ReceiverSKU: SDV-C1H-RX
£664.99Ex. VATThe CYP SDV-C1H-RX is a compact SDVoE receiver for AV-over-IP systems, delivering 4K@60 4:4:4 video with HDR and HDCP 2.2 over 10G Ethernet runs up to 100 metres. -
CYP
CYP SDV-C1H-TX – SDVoE Full 4K 10G AV over IP CAT-Based Small Form Factor ReceiverSKU: SDV-C1H-TX
£637.49Ex. VATThe CYP SDV-C1H-TX is a compact SDVoE transmitter that encodes and distributes 4K@60 4:4:4 video over 10G Ethernet with full HDR pass-through and HDCP 2.2 compliance. It supports Cat.6A cable runs up to 100 metres with PoE powering, making it well suited to professional AV-over-IP installations where source devices need to feed into a managed network. -
CYP
CYP SDV-F1H-RX SDVoE Full 4K 10G AV over IP Fiber Based Small Form Factor ReceiverSKU: SDV-F1H-RX
£664.99Ex. VATThe CYP SDV-F1H-RX is a small form factor SDVoE receiver that extends uncompressed 4K60 4:4:4 video, multi-channel audio and data over a single 10-Gigabit fibre link with minimum latency. Built around interchangeable SFP+ modules, it carries signals up to 300m as standard and up to 120km with an alternative module, while supporting HDMI 2.0, HDCP 2.2 and pass-through of HDR and 10-bit colour. Paired with the optional SDV-CS8 IP Master Controller, multiple units combine over standard 10G fibre switches to build matrix, multiviewer and video wall systems. -
CYP
CYP SDV-F1H-TX SDVoE Full 4K 10G AV over IP Fiber Based Small Form Factor ReceiverSKU: SDV-F1H-TX
£637.49Ex. VATThe CYP SDV-F1H-TX is a compact SDVoE AV over IP transmitter that sends uncompressed 4K@60 4:4:4 HDMI video, audio and data across a 10 Gigabit fiber network. With field-replaceable SFP+ modules it supports standard runs of 300m and distances up to 120km, while HDCP 2.2, HDR and multi-channel HD Bitstream passthrough preserve full source quality. Its small form factor and IP switchability make it ideal for matrix, multiviewer and video wall systems in large installations. -
CYP
CYP SDV-FTRX-BD SDVoE Full 4K 10G AV over IP Bi-directional Fiber Based Transceiver with USB ExtensionSKU: SDV-FTRX-BD
£1,109.16Ex. VATThe CYP SDV-FTRX-BD is an SDVoE full 4K 10G AV over IP bi-directional fibre transceiver that distributes uncompressed HDMI and DisplayPort signals at 4K60 4:4:4 across a network. Using an ultra-light, visually lossless compression scheme over multimode fibre, it carries video, multichannel audio, IR, RS-232, USB 2.0 and Ethernet up to 300m on a single link. It supports point-to-point KVM extension and, when paired with the optional SDV-CS8 controller, scales into a full distributed matrix with multiview and video wall capability. -
£290.82Ex. VATThe CYP AU-DTI4-TX is a four channel analogue audio to Dante transmitter that converts balanced mono inputs into networked digital audio for distribution over standard Ethernet. High quality analogue to digital conversion, adjustable pre-gain and switchable phantom power make it ideal for sending microphone and line level sources around large installations with very low latency. Powered entirely over PoE, it integrates cleanly into any Dante audio network and removes the need for heavy multi-core analogue cabling.
