AV Distribution
Matrix switchers, extenders, audio integration and signal conversion for multi-room and custom install AV. Professional distribution hardware from Blustream, CYP, Gefen and SEADA.
Shop by Brand
Designing AV distribution that works
AV distribution is a design job before it is a shopping job. Get the source count, display count, distances and control method clear first, and the hardware choice usually follows without much argument.
Three questions decide most systems. How many sources need to reach how many displays, and does every display need independent access to every source? What is the longest cable run, and can it be Cat6 or does it need fibre? What audio has to come out of the video path, and where does it need to arrive? Answer those and the specification largely writes itself.
The details that cause problems later are EDID handling, HDCP version support and control integration. A system that works on day one can fail when a source is replaced with one using a newer HDCP version, so specify with some headroom. IR, RS232 and IP control all need planning at design stage rather than after the cable is in the wall. If you are specifying a system, send us the layout and we will work through it with you.
-
£290.82Ex. VATThe CYP AU-DTO4-RX is a Dante network audio receiver that converts a single Dante input into four channels of balanced mono analogue audio over four 3-pin Phoenix outputs. Featuring high quality DAC conversion with very low latency, AES67 compatibility and configurable volume and muting, it lets installers route uncompressed digital audio across standard Ethernet networks instead of running heavy multi-core analogue cabling. Powered directly by PoE to the IEEE 802.3af standard, it draws everything it needs from the network switch for flexible, single-cable installation.
-
£62.49Ex. VAT
The CYP RAX-B-300 is a 3U blanking plate for the RAX-300 modular equipment rack, designed to fill unused rack space and tidy the front of an AV installation. Its open-frame construction also provides a dedicated mounting point for the RAX-FAN-300 cooling fan, allowing airflow to be added exactly where it is needed. Compact and lightweight, it helps keep components neatly housed and easy to access for servicing in both point-to-point and multi-zone systems.
-
£92.49Ex. VATThe CYP RAX-FAN-300 is a 3U cooling fan unit designed for the RAX-300 rack system. It mounts neatly into the rack to draw heat away from densely packed AV components such as extenders, repeaters and breakout boxes, helping maintain reliable operation in complex installations. Power is drawn from a compatible RAX-PSU, and the unit is TAA compliant and backed by a five year warranty.
-
£105.82Ex. VATThe CYP RAX-FAN-600 is a 6U cooling fan unit designed for the RAX-600 rack system. It mounts neatly into the rack to draw heat away from densely packed AV components such as extenders, repeaters and breakout boxes, helping maintain reliable operation in complex installations. Power is drawn from a compatible RAX-PSU, and the unit is TAA compliant and backed by a five year warranty. -
£191.66Ex. VATThe CYP CR-IPS1 is an IP to serial controller that lets you control a single RS-232, RS-422 or RS-485 device over a standard IP network. A single Phoenix serial port handles the device connection, while WebGUI, Telnet and console interfaces give flexible control and configuration. It can be powered over Ethernet or by a 12V supply, and is TAA compliant with a five year warranty. -
£207.49Ex. VATThe CYP SDM-HBT3-TRX is an HDBaseT3 transceiver module for CYP's SDM modular platform, switchable between transmit and receive mode via a physical slide switch. Fitted into a compatible host such as the OR-32SDMI or OR-PIP42SDMO, it extends 4K@60 4:4:4 HDMI with HDR point to point over a single Cat6A/7 cable at distances up to 40 metres. It is HDCP 2.2 compliant and TAA certified. -
CYP
CYP SDM-SDI12G-RX – 12G SDI Input Module Card, 4K@60 12G SDI with SDI Loop OutSKU: SDM-SDI12G-RX
£507.49Ex. VATThe CYP SDM-SDI12G-RX is a 12G-SDI input module card for CYP's SDM platform, bringing SDI sources such as cameras, medical imaging and broadcast equipment into a host product like the OR-32SDMI. It handles 12G, 6G, 3G, HD and SD-SDI at resolutions up to 4K@60, includes a BNC SDI loop output, and carries embedded LPCM 7.1 audio. The module is powered by its host and is TAA compliant. -
CYP
CYP SDM-SDI12G-TX – 12G SDI Output Module Card, 4K@60 12G SDI with Dual SDI OutputsSKU: SDM-SDI12G-TX
£487.49Ex. VATThe CYP SDM-SDI12G-TX is a 12G-SDI output module card for CYP's SDM platform, taking signals from a host product such as the OR-PIP42SDMO and sending them out to SDI displays, recorders and wider SDI systems. It supports 12G, 6G, 3G, HD and SD-SDI at resolutions up to 4K@60 and provides dual SDI outputs on BNC, with embedded LPCM 7.1 audio at 96kHz. The module is powered by its host and is TAA compliant. -
CYP
CYP PUV-1710L-AVLC-KIT – HDBaseT1 LITE Full 4K AVLC Series Transmitter & Receiver Kit with PoHSKU: CYP PUV-1710L-AVLC-KIT
£512.49Ex. VATThe CYP PUV-1710L-AVLC-KIT is an HDBaseT-Lite transmitter and receiver kit that extends 4K HDMI, audio, IR, RS-232 and power over a single Cat6a/7 cable. Using CYP's AVLC visually lossless compression, it delivers 4K@60 4:4:4 up to 35 metres or 4K@60 4:2:0 and 1080p up to 70 metres, with HDR and Dolby Vision support. The receiver is powered over HDBaseT, and the kit is HDCP 2.2 compliant and TAA certified. -
CYP

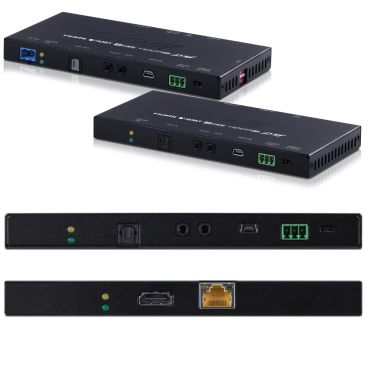

CYP PUV-1730PL-AVLC-KIT – HDBaseT1 LITE 4K AVLC Series Transmitter & Receiver Kit with OAR & PoHSKU: PUV-1730PL-AVLC-KIT
£620.82Ex. VATThe CYP PUV-1730PL-AVLC-KIT is an HDBaseT-Lite transmitter and receiver kit that extends 4K HDMI, audio, IR, RS-232 and power over a single Cat6a/7 cable, and adds Optical Audio Return (OAR) to send audio from the display back to the source. Using AVLC compression it delivers 4K@60 4:4:4 to 35 metres or 4K@60 4:2:0 and 1080p to 70 metres, with HDR and Dolby Vision. The receiver is PoH-powered and the kit is HDCP 2.2 compliant. -
CYP
CYP PUV-1810-AVLC-KIT – HDBaseT1 Full 4K AVLC Series Transmitter & Receiver Kit with LAN & PoHSKU: PUV-1810-AVLC-KIT
£626.66Ex. VATThe CYP PUV-1810-AVLC-KIT is a full HDBaseT transmitter and receiver kit that extends 4K HDMI, audio, IR, RS-232, Ethernet and power over a single Cat6a/7 cable. Using AVLC visually lossless compression, it delivers 4K@60 4:4:4 up to 70 metres and 4K@60 4:2:0 or 1080p up to 100 metres, with HDR and Dolby Vision. A built-in LAN port adds network connectivity at both ends, and the PoH-powered receiver makes for a clean, HDCP 2.2 compliant install. -
CYP
CYP PUV-2100-AVLC-KIT – HDBaseT2 Full 4K AVLC Series Kit with LAN, PoH & Audio/ARC PathwaySKU: PUV-2100-AVLC-KIT
£858.32Ex. VATThe CYP PUV-2100-AVLC-KIT is a HDBaseT 2.0 transmitter and receiver kit that extends 4K HDMI, audio, IR, RS-232, Ethernet and power over a single Cat6a/7 cable up to 100 metres. Using AVLC visually lossless compression, it carries 4K@60 4:4:4 with HDR and HDCP 2.2, and adds a selectable bi-directional optical ARC pathway so display audio can be returned to the source. The PoH-powered receiver makes for a clean, TAA-compliant install.
