Matrix & Switchers
HDMI matrix units, switchers, HDBaseT matrices and multi-viewers in 2x2 through to 16x16 configurations, from Blustream, CYP, Gefen and SEADA.
Shop by Brand
Sizing a matrix correctly
A matrix lets any source reach any display independently. A switcher selects between sources for a single display. If two rooms need to watch different things at the same time, you need a matrix, and no amount of splitting will substitute for one.
Size on inputs and outputs, then add headroom. A 4x4 with all four inputs used leaves nothing for the next source you buy, and expanding later usually means replacing the unit rather than adding to it. HDBaseT matrices send each output over Cat6 or Cat6a to a receiver at the display, which is how most whole house systems are wired.
Check bandwidth support against what the sources actually output. A matrix rated for 4K at 60Hz will not pass 4K at 120Hz from a games console, and the symptom is usually a blank screen rather than a helpful error message. Confirm HDCP version support, EDID management, and whether audio is extracted at the matrix or at each receiver. Send us the room layout and source list and we will specify it.
-
NEW£2,708.33Ex. VATThe SEADA SD-MV-CM1602 is a 4K60 16x2 multiviewer and UHD video switcher that brings up to sixteen HDMI and DisplayPort sources together on a single display. Two simultaneous HDMI 2.0 outputs, free layouts on a 15 x 15 grid, seamless window switching and eight recallable presets make it a flexible choice for control rooms, broadcast monitoring, conferencing and security installations.
-
NEW£1,550.00Ex. VATThe Blustream CMX88CS-V2 is an 8x8 4K HDMI 2.0 matrix switcher that routes any of eight HDMI sources to any of eight displays. Part of Blustream's Contractor Series, it carries 18Gbps signals up to 4K 60Hz 4:4:4 with HDR, downscales individual outputs for older screens, and breaks out zone audio to analogue and optical outputs for multi-room installations.
-
£319.02Inc. VAT
The EL-41HP-4K22 4-Way Advanced HDMI Switcher by CYP allows the user to switch between 4 different HDMI sources, sending high quality video and audio to a single display, and is 4K compatible.
-
CYP
CYP EL-XTREAM-PIP 4x2 HDMI Switch with Integrated Multi-View & Video CaptureSKU: CYP EL-XTREAM-PIP
£1,142.86Ex. VATThe EL-XTREAM-PIP by CYP allows picture-in-picture multi-view of up to 4 HDMI inputs simultaneously, and also enables you to live-record the connected input device, making it optimised for video-conference or remote-learning uses. This product is compatible with Windows, MacOS and Linux.
-

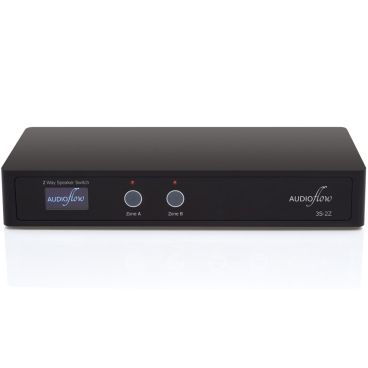

£145.82Ex. VATThe Audioflow 3S-2Z 2-Way Smart Speaker Switch lets you control multiple speakers from a single amplifier effortlessly. With Wi-Fi control via the Audioflow app, Amazon Alexa integration, and Contact Closure connections, you can easily manage your sound across different areas. Rated for up to 300W at 8Ω, this smart switch is perfect for multi-room audio setups and provides flexibility, safety, and convenience. Designed and manufactured in the UK for premium performance.
-
£494.99Ex. VATThe EL-21PIP is an advanced 2 Way HDMI switch with integrated Multi-view (Picture In Picture) technology. This plug and play solution offers advanced control and display options for the integration of 2 sources onto a single display. The EL-21PIP is the perfect cost effective solution for integrating a combination of sources into any single display within any commercial or residential AV installation.
-
£1,611.99Inc. VATThe EL-42M-PIP is an advanced Picture-in-Picture (PIP) Multi-view Matrix designed for use across Broadcast, Live events, Military and Medical applications. Blustream's most advanced PIP device features support for 4K HDR sources. The EL-42M-PIP enables up to 4 sources to be viewed in multi-view mode via the two mirrored HDMI outputs in your chosen configuration. Simply switch between pre-sets or change the configuration live, via the onboard web GUI. -

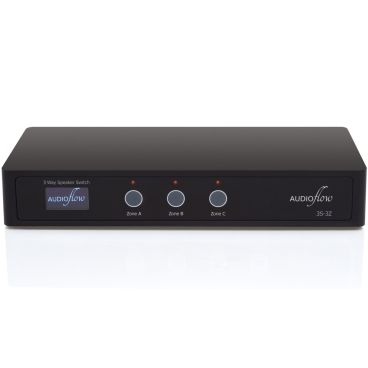

£162.49Ex. VATThe Audioflow 3S-3Z 2-Way Smart Speaker Switch lets you control multiple speakers from a single amplifier effortlessly. With Wi-Fi control via the Audioflow app, Amazon Alexa integration, and Contact Closure connections, you can easily manage your sound across different areas. Rated for up to 300W at 8Ω, this smart switch is perfect for multi-room audio setups and provides flexibility, safety, and convenience. Designed and manufactured in the UK for premium performance.
-
CYP
CYP EL-2600V 4K UHD+ HDMI/DP/VGA/USB over HDBaseT Transmitter with Trigger ControlSKU: CYP EL-2600V 4K UHD
£894.99Ex. VATThe EL-2600V by CYP is the ultimate source in flexibility and compatibility, supporting HDMI, DisplayPort and VGA up to 4K/60. Power supply not included.
-
£723.82Inc. VATCYP's PUV-1650-TX can transmit 4K/60Hz signals up to 100m over HDBaseT and can be powered by PoE from the compatible RX receiver.
-
£424.16Ex. VATThe SY-XTREAM-PIP HDMI to USB video capture / recorder with HDMI bypass can support resolutions up to 18Gbps (600Mhz) 4K UHD with HDR (via the HDMI bypass pathway) while simultaneously streaming the audio and video signal at 1080p to the USB connected PC for capture and re-broadcast. Special video timing stabilisation feature helps to ensure that the USB capture stream won't lock up or drop even if the HDMI input source is intermittent or disconnected. This makes your live streaming stable and non-stop. -

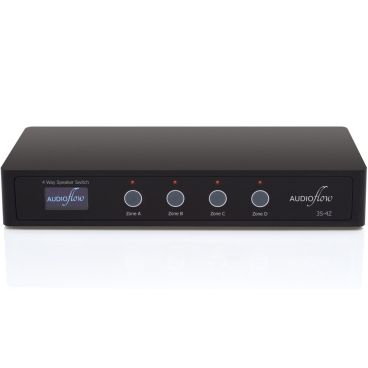

£179.16Ex. VATThe Audioflow 3S-4Z 2-Way Smart Speaker Switch lets you control multiple speakers from a single amplifier effortlessly. With Wi-Fi control via the Audioflow app, Amazon Alexa integration, and Contact Closure connections, you can easily manage your sound across different areas. Rated for up to 300W at 8Ω, this smart switch is perfect for multi-room audio setups and provides flexibility, safety, and convenience. Designed and manufactured in the UK for premium performance.
