Matrix & Switchers
HDMI matrix units, switchers, HDBaseT matrices and multi-viewers in 2x2 through to 16x16 configurations, from Blustream, CYP, Gefen and SEADA.
Shop by Brand
Sizing a matrix correctly
A matrix lets any source reach any display independently. A switcher selects between sources for a single display. If two rooms need to watch different things at the same time, you need a matrix, and no amount of splitting will substitute for one.
Size on inputs and outputs, then add headroom. A 4x4 with all four inputs used leaves nothing for the next source you buy, and expanding later usually means replacing the unit rather than adding to it. HDBaseT matrices send each output over Cat6 or Cat6a to a receiver at the display, which is how most whole house systems are wired.
Check bandwidth support against what the sources actually output. A matrix rated for 4K at 60Hz will not pass 4K at 120Hz from a games console, and the symptom is usually a blank screen rather than a helpful error message. Confirm HDCP version support, EDID management, and whether audio is extracted at the matrix or at each receiver. Send us the room layout and source list and we will specify it.
-
£105.82Ex. VATThe CYP RAX-FAN-600 is a 6U cooling fan unit designed for the RAX-600 rack system. It mounts neatly into the rack to draw heat away from densely packed AV components such as extenders, repeaters and breakout boxes, helping maintain reliable operation in complex installations. Power is drawn from a compatible RAX-PSU, and the unit is TAA compliant and backed by a five year warranty. -
£207.49Ex. VATThe CYP SDM-HBT3-TRX is an HDBaseT3 transceiver module for CYP's SDM modular platform, switchable between transmit and receive mode via a physical slide switch. Fitted into a compatible host such as the OR-32SDMI or OR-PIP42SDMO, it extends 4K@60 4:4:4 HDMI with HDR point to point over a single Cat6A/7 cable at distances up to 40 metres. It is HDCP 2.2 compliant and TAA certified.
-
CYP
CYP SDM-SDI12G-RX – 12G SDI Input Module Card, 4K@60 12G SDI with SDI Loop OutSKU: SDM-SDI12G-RX
£507.49Ex. VATThe CYP SDM-SDI12G-RX is a 12G-SDI input module card for CYP's SDM platform, bringing SDI sources such as cameras, medical imaging and broadcast equipment into a host product like the OR-32SDMI. It handles 12G, 6G, 3G, HD and SD-SDI at resolutions up to 4K@60, includes a BNC SDI loop output, and carries embedded LPCM 7.1 audio. The module is powered by its host and is TAA compliant. -
CYP
CYP SDM-SDI12G-TX – 12G SDI Output Module Card, 4K@60 12G SDI with Dual SDI OutputsSKU: SDM-SDI12G-TX
£487.49Ex. VATThe CYP SDM-SDI12G-TX is a 12G-SDI output module card for CYP's SDM platform, taking signals from a host product such as the OR-PIP42SDMO and sending them out to SDI displays, recorders and wider SDI systems. It supports 12G, 6G, 3G, HD and SD-SDI at resolutions up to 4K@60 and provides dual SDI outputs on BNC, with embedded LPCM 7.1 audio at 96kHz. The module is powered by its host and is TAA compliant. -
CYP
CYP EL-8400VA – 6 x 2 Presentation Seamless Matrix with USB & Audio/Mic I/O plus a built-in audio amplifierSKU: EL-8400VA
£2,499.99Ex. VATThe CYP EL-8400VA is a 6x2 seamless presentation matrix with integrated scaling that switches HDMI, DisplayPort, USB-C and HDBaseT sources to an HDMI and an HDBaseT2 output at up to 4K@60. It pairs seamless switching, USB-C and KVM with a full audio system: a DSP mixer, dual mic inputs with phantom power and a built-in 20W-per-channel amplifier. It is controlled via front panel, OSD, RS-232, Telnet and WebGUI, and can power a compatible HDBaseT endpoint over PoH. -
CYP
CYP OUTX-2100-AVLC – HDBaseT2 Full 4K 4-port Output Card with AVLC for the MODX-1616SKU: OUTX-2100-AVLC
£2,184.99Ex. VATThe CYP OUTX-2100-AVLC is a 4-port HDBaseT 2.0 output card for the MODX-1616 modular matrix, driving up to four HDBaseT receivers with 4K HDMI, audio, IR, RS-232, Ethernet and power over single Cat6a/7 cables. Using AVLC visually lossless compression, it delivers 4K@60 4:4:4 with HDR and Dolby Vision at up to 70 metres, or 1080p at up to 100 metres. It adds four analogue audio breakout outputs and is powered by the host chassis. -
£692.49Ex. VATThe CYP XA-8P is a battery-powered 8K HDMI pattern generator and analyser, giving AV installers a portable tool to test and verify every part of an HDMI signal path. It generates up to 40 resolutions and 20 test patterns to 8K, and analyses source and sink signals with EDID management, HDCP and SCDC monitoring, and HDR handling. HDMI 2.1 compliant with 40Gbps support, it fits in the palm and recharges over USB-C. -
£1,026.66Ex. VATThe CYP XA-FAK Pro AV Installer First Aid Kit is a curated bundle of CYP backup essentials for solving common on-site installation problems quickly. It brings together the XA-3P 4K HDMI pattern generator, analyser and cable tester, an RE-101-4K22 HDMI repeater, an RE-EDID-4K22 EDID manager, 1m and 2m Ultra High Speed 8K HDMI cables, and the XA-CASE hard case. It is the kind of go-to kit that turns a site snag into a quick fix.
-
CYP
CYP PUV-1630TXWP-EU – HDBaseT1 switching Wallplate Transmitter (EU version) for the Reverse Power PUV-1600 SeriesSKU: PUV-1630TXWP-EU
£568.32Ex. VATThe CYP PUV-1630TXWP-EU is an EU wall-plate HDBaseT transmitter with two HDMI inputs and one VGA input, auto-switching between sources and scaling them over a single Cat5e/6/7 cable up to 100 metres to a compatible PUV-1600 receiver. It embeds analogue audio, carries a LAN connection on the same cable, and offers CEC control. As part of the reverse-power PUV-1600 series, it draws power from the receiver, so no local supply is needed at the plate. -
NEW£2,218.67Ex. VATThe CYP EL-44M-VW is a 4x4 seamless HDMI matrix and multi-viewer that routes four sources to four displays at up to 4K@60 4:4:4, with three output modes covering Matrix, Multiview and TV Wall. Seamless switching moves between sources with no loss of sync, and up to four freely scalable windows can be positioned on screen. Four analogue audio outputs and control by front panel, WebGUI, Telnet, RS-232 and IR complete a versatile 1U unit.
-
NEW£471.45Ex. VATThe CYP OR-442USB is a 4x4+2 USB 3.2 Gen 2 data matrix switch that lets four USB-C host computers share six USB devices with fully matrixed switching. Four USB 3.2 device ports run at up to 10Gbps for fast data transfer, while two dedicated USB 2.0 ports handle keyboard and mouse. Host location is set automatically by hot plug detection, or manually via front panel, triggers and RS-232. -

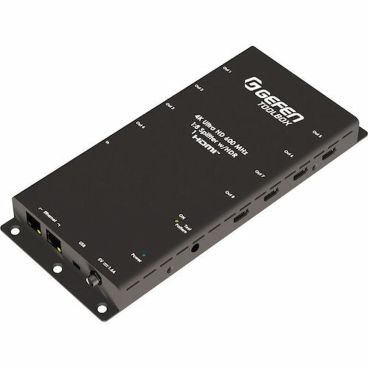

NEW£887.40 £986.00Ex. VAT ✓ Save £98.60The Gefen GTB-UHD600-18S-RT sends one 4K HDMI source to eight displays at once, at up to 4K DCI 60Hz 4:4:4 with HDR. Each output has its own scaler, so a 1080p screen gets a picture it can show while the others stay at 4K. It cascades to hundreds of displays and offers IP control, Smart CEC and EDID management for signage and large installations.
