AV Distribution
Matrix switchers, extenders, audio integration and signal conversion for multi-room and custom install AV. Professional distribution hardware from Blustream, CYP, Gefen and SEADA.
Shop by Brand
Designing AV distribution that works
AV distribution is a design job before it is a shopping job. Get the source count, display count, distances and control method clear first, and the hardware choice usually follows without much argument.
Three questions decide most systems. How many sources need to reach how many displays, and does every display need independent access to every source? What is the longest cable run, and can it be Cat6 or does it need fibre? What audio has to come out of the video path, and where does it need to arrive? Answer those and the specification largely writes itself.
The details that cause problems later are EDID handling, HDCP version support and control integration. A system that works on day one can fail when a source is replaced with one using a newer HDCP version, so specify with some headroom. IR, RS232 and IP control all need planning at design stage rather than after the cable is in the wall. If you are specifying a system, send us the layout and we will work through it with you.
-
£509.17Ex. VATThe MSolutions MS-210U6S is a 4K HDMI / KVM HDBaseT extender set allowing for uncompressed video and audio to be extended up to 40m at 4K UHD (10.2Gbps), and 70m at 1080p or lower resolutions. 6x independent USB2.0 channels allow for bi-directional USB client to host connectivity for connectivity of various peripherals in a variety of commercial and residential applications. -
£287.50Ex. VATThe MSolutions MS-070PRI is a 4K HDMI extender using uncompressed HDBaseT technology to extend 4K UHD & HDR video (10.2Gbps) to a distance of up to 40m over single CAT cable with 1080p or lower resolutions to up to 70m.
-
£310.00Ex. VAT
The MSolutions MS-100RI is a 4K HDMI extender using uncompressed HDBaseT technology to extend 4K UHD & HDR video (10.2Gbps) to a distance of up to 70m over single CAT cable with 1080p or lower resolutions to up to 100m. The extender provides bi-directional RS-232 and a single channel IR link between TX to RX, or RX to TX.
-
£346.67Ex. VATThe MSolutions MS-100PRI is a 4K HDMI extender using uncompressed HDBaseT technology to extend 4K UHD & HDR video (10.2Gbps) to a distance of up to 70m over single CAT cable with 1080p or lower resolutions to up to 100m. -

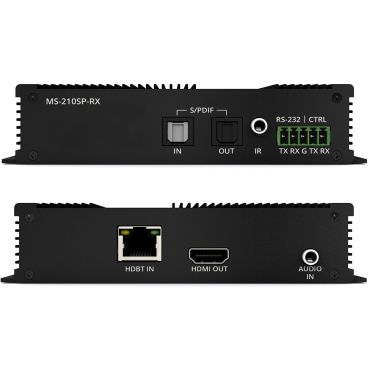

£509.17Ex. VATThe MSolutions MS-210SP is a 4K HDMI HDBaseT extender set allowing for uncompressed video and audio to be extended up to 40m at 4K UHD & HDR (10.2Gbps), and 70m at 1080p or lower resolutions. S/PDIF audio return enables the sink to return audio to an audio amplification or distribution device located remotely to the display. -
Blustream
Blustream HMXL88ARC 8x8 HDBaseT™ CSC ARC Matrix - 70m (4K 60Hz 4:4:4 up to 40m)SKU: HMXL88ARC
£3,138.00Inc. VATThe HMXL88ARC HDBaseT™ Matrix delivers new levels of advanced audio integration into our Essential range of 4K video matrix solutions. The HMXL88ARC is an 8x8 HDMI 2.0 4K 60Hz 4:4:4 matrix that uses CSC (Colour Space Conversion) technology to deliver 18Gbps HDMI over distances of up to 40m (1080p to 70m).
-
Blustream
Blustream HMXL66ARC 6x6 HDBaseT™ CSC ARC Matrix - 70m (4K 60Hz 4:4:4 up to 40m)SKU: HMXL66ARC
£2,314.17Ex. VATThe HMXL66ARC HDBaseT™ Matrix delivers new levels of advanced audio integration into our Essential range of 4K video matrix solutions. The HMXL66ARC is a 6x6 HDMI 2.0 4K 60Hz 4:4:4 matrix that uses CSC (Colour Space Conversion) technology to deliver 18Gbps HDMI over distances of up to 40m (1080p to 70m).
-
£3,258.92Ex. VATThe PU-8H8HBTPL-4K22 8 by 8 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD, HDCP 2.2) and multi-channel digital audio from 8 HDMI sources to 8 HDBaseT outputs via single CAT5e/6/7 cables up to 100m.
-
£270.82Ex. VATThe CR-CS2 is a simple Control System for a wide variety of connected devices. It has 16 user-defined macro events stored within the unit activated via the WebGUI or by telnet, eight of which can also be activated by the external trigger connections. -
£877.29Ex. VATThe DS-MSC14-4K22 by CYP is designed for custom video installations, and is capable of supporting up to 4 1080p displays. Multiple units can support up to 64 displays in an 8x8 configuration.
-
CYP
CYP EL-2600V 4K UHD+ HDMI/DP/VGA/USB over HDBaseT Transmitter with Trigger ControlSKU: CYP EL-2600V 4K UHD
£894.99Ex. VATThe EL-2600V by CYP is the ultimate source in flexibility and compatibility, supporting HDMI, DisplayPort and VGA up to 4K/60. Power supply not included.
-
£841.08Ex. VATCYP's EL-7400V Presentation Switcher and Scaler is able to switch and scale as many as 5 AV inputs simultaneously over HDBaseT LITE and HDMI ouptuts. The HDBaseT LITE output allows you to send signals up to 60m over a CAT5e/6/7 cable, and supports analogue, digital coaxial and optical audio outputs.
