AV Distribution
Matrix switchers, extenders, audio integration and signal conversion for multi-room and custom install AV. Professional distribution hardware from Blustream, CYP, Gefen and SEADA.
Shop by Brand
Designing AV distribution that works
AV distribution is a design job before it is a shopping job. Get the source count, display count, distances and control method clear first, and the hardware choice usually follows without much argument.
Three questions decide most systems. How many sources need to reach how many displays, and does every display need independent access to every source? What is the longest cable run, and can it be Cat6 or does it need fibre? What audio has to come out of the video path, and where does it need to arrive? Answer those and the specification largely writes itself.
The details that cause problems later are EDID handling, HDCP version support and control integration. A system that works on day one can fail when a source is replaced with one using a newer HDCP version, so specify with some headroom. IR, RS232 and IP control all need planning at design stage rather than after the cable is in the wall. If you are specifying a system, send us the layout and we will work through it with you.
-
Blustream
Blustream RX70CS HDBaseT™ CSC Receiver - 4K 60Hz 4:4:4 up to 40m (1080p up to 70m)SKU: RX70CS
£212.50Ex. VATBlustream's RX70CS HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ ARC Receiver offers market leading features and outstanding value utilising CSC technology.
PLEASE NOTE THIS IS RECEIVER ONLY.
This comes without power supply.
-
£412.00Inc. VAT
The HEX70ARC-KIT 4K HDBaseT™ ARC extender set offers market leading features for the custom installation industry. The product delivers HDMI, ARC, Optical Audio Return, Bi-directional IR and Bi-directional PoC (Power over Cable) up to lengths of 70m (40m at 4K 60Hz 4:2:0).
-
£1,880.00Ex. VAT
Blustream's AMF42AU is an advanced 4K 4x2 HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 multi-format presentation switcher featuring 3 x HDMI 2.0 and 1 x USB-C input to 2 x HDMI 2.0 / 1x HDBaseT™ output.
-

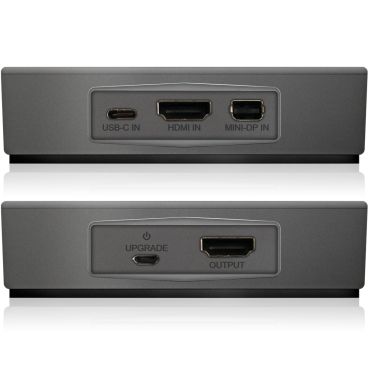

SALE£124.17 £176.67Ex. VAT ✓ Save £52.50Blustream's MFP31 is a portable multi-format presentation switch featuring HDMI, Mini DisplayPort™ and USB-C inputs to a single HDMI output, with manual or auto source selection.
-
£2,599.99Ex. VATThe MS-TestPro MS-104B is the only HDBaseT tester that is all-inclusive, 100% reliable, portable and affordable, making it an indispensable tool for AV installers and integrators. It provides AV professionals with all the information needed while in the field to enable them to verify the integrity and stability of every system tested down to the last detail.
-
£722.50Ex. VATThe new Spec. 2.0 module, available for use with the MS-TestPro, enables users to test and certify all the added functions and capabilities of HDBaseT Spec. 2.0 systems with the same unsurpassed level of quality and reliability that the MS-TestPro is known for among HDBaseT 1.0 installers and integrators. -
£410.82Ex. VATThe optional MS-TestPro DC Resistance and Looper modules, can be used to qualify the DC resistance of a CATx link, and to check the cables ability to provide a sufficient level of PoH (Power over HDBaseT). -
£410.82Ex. VATThe optional HDMI Cable Test Modules enable ProAV integrators to easily evaluate cabling compatibility to the HDMI standard – including bandwidths (18/9/4.5Gbps), resolutions (HDR, UHD, HD), cable wiring quality, pin connectivity, and CEC support. -
£700.83Ex. VATThe MSolutions MS-6U41A is a high performance USB extender allowing for a single USB-C data, and 4x USB3.0 compatible devices to be extended to distances of up to 100m over a single CATx cable infrastructure. -
MSolutions
MSolutions MS-210U1RI HDBaseT KVM Extender Set - 4K to 40m (1080p to 70m)SKU: MS-210U1RI
£354.17Ex. VATThe MSolutions MS-210U1RI is a 4K HDMI / KVM HDBaseT extender set allowing for uncompressed video and audio to be extended up to 40m at 4K UHD (10.2Gbps), and 70m at 1080p or lower resolutions. -
£457.81Ex. VATThe MSolutions MS-310U1RI is a 4K HDMI / KVM HDBaseT extender set allowing for uncompressed video and audio to be extended up to 90m at 4K UHD (10.2Gbps), and 100m at 1080p or lower resolutions. -
£500.00Ex. VATThe MSolutions MS-210U4P is a 4K HDMI / KVM HDBaseT extender set allowing for uncompressed video and audio to be extended up to 40m at 4K UHD (10.2Gbps), and 70m at 1080p or lower resolutions. 4x independent USB2.0 channels allow for bi-directional USB client to host connectivity for connectivity of various peripherals in a variety of commercial applications.
