AV Distribution
Matrix switchers, extenders, audio integration and signal conversion for multi-room and custom install AV. Professional distribution hardware from Blustream, CYP, Gefen and SEADA.
Shop by Brand
Designing AV distribution that works
AV distribution is a design job before it is a shopping job. Get the source count, display count, distances and control method clear first, and the hardware choice usually follows without much argument.
Three questions decide most systems. How many sources need to reach how many displays, and does every display need independent access to every source? What is the longest cable run, and can it be Cat6 or does it need fibre? What audio has to come out of the video path, and where does it need to arrive? Answer those and the specification largely writes itself.
The details that cause problems later are EDID handling, HDCP version support and control integration. A system that works on day one can fail when a source is replaced with one using a newer HDCP version, so specify with some headroom. IR, RS232 and IP control all need planning at design stage rather than after the cable is in the wall. If you are specifying a system, send us the layout and we will work through it with you.
-
CYP
CYP PUV-1630TXWP-EU – HDBaseT1 switching Wallplate Transmitter (EU version) for the Reverse Power PUV-1600 SeriesSKU: PUV-1630TXWP-EU
£568.32Ex. VATThe CYP PUV-1630TXWP-EU is an EU wall-plate HDBaseT transmitter with two HDMI inputs and one VGA input, auto-switching between sources and scaling them over a single Cat5e/6/7 cable up to 100 metres to a compatible PUV-1600 receiver. It embeds analogue audio, carries a LAN connection on the same cable, and offers CEC control. As part of the reverse-power PUV-1600 series, it draws power from the receiver, so no local supply is needed at the plate. -
NEW£2,218.67Ex. VAT
The CYP EL-44M-VW is a 4x4 seamless HDMI matrix and multi-viewer that routes four sources to four displays at up to 4K@60 4:4:4, with three output modes covering Matrix, Multiview and TV Wall. Seamless switching moves between sources with no loss of sync, and up to four freely scalable windows can be positioned on screen. Four analogue audio outputs and control by front panel, WebGUI, Telnet, RS-232 and IR complete a versatile 1U unit.
-
NEW£471.45Ex. VATThe CYP OR-442USB is a 4x4+2 USB 3.2 Gen 2 data matrix switch that lets four USB-C host computers share six USB devices with fully matrixed switching. Four USB 3.2 device ports run at up to 10Gbps for fast data transfer, while two dedicated USB 2.0 ports handle keyboard and mouse. Host location is set automatically by hot plug detection, or manually via front panel, triggers and RS-232.
-
NEW£526.93Ex. VATThe CYP AU-DTM1 is a Dante Euromodule wall plate combining a high-quality integrated microphone and a stereo line output in a single transceiver. It sends and receives audio simultaneously over standard Cat.5e/6/7 cable at distances up to 100 metres, with typical latency of around 1ms. Power comes from PoE over the same cable, and the unit is AES67 compatible for use in wider networked audio systems. -
NEW£1,367.23Ex. VATThe CYP PU-USB1H-KIT is a USB-C AV and data extender kit that sends video and USB data from a single USB-C host to an HDMI display and multiple USB devices up to 100 metres away. Built on HDBaseT3 with USB 3.2 Gen1, it provides USB hub ports at both ends, up to 60W USB-C Power Delivery, and 802.3at PoE so the receiver can be powered from the transmitter.
-
NEWBlustream
Blustream HEX70SL-KIT Slimline HDBaseT™ Extender Kit - 70m (4K up to 40m), Bi-directional IR and Bi-directional PoC Ex-DemoSKU: HEX70SL-KIT-Ex-Demo
£154.16 £181.67Ex. VAT ✓ Save £27.51The HEX70SL-KIT is Blustream's upgrade for the HEX70B-KIT, with all the functionality of its predecessor as well as a slimmer profile and the addition of HDCP 2.2 compliance and Smart EDID management- all at a lower price!
-

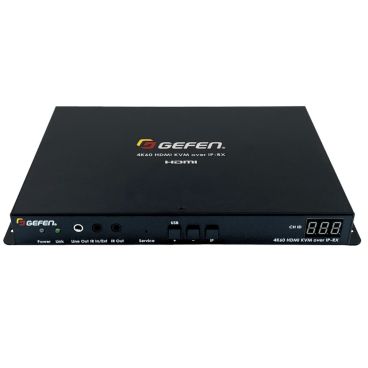

NEW£1,759.50 £1,955.00Ex. VAT ✓ Save £195.50The Gefen GF-HDK18G-VIP-RX is the receiver half of Gefen's Gen3 AV over IP system, taking 4K 60Hz 4:4:4 HDMI with HDR10, HDR10+ and Dolby Vision from any sender on a gigabit network at up to 100m. Two USB 2.0 ports provide full KVM control, with a built-in scaler, a 16x16 video wall controller, analogue audio de-embedding and an optical audio return path. Powered by 802.3at PoE or the supplied 12V supply. -

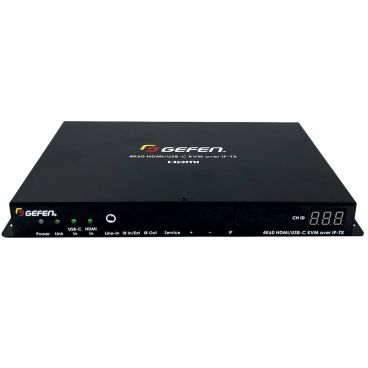

NEW£1,926.90 £2,141.00Ex. VAT ✓ Save £214.10The Gefen GF-HDK18G-VIP-TX is the sender half of Gefen's Gen3 AV over IP system. It takes 4K 60Hz 4:4:4 video with HDR10, HDR10+ and Dolby Vision from an HDMI or USB-C source and puts it on a gigabit network, together with USB KVM data, audio, bi-directional IR and RS-232. It has an HDMI loop-through for a local monitor, AES-256 encryption and 802.3at PoE. -
NEW£887.40 £986.00Ex. VAT ✓ Save £98.60The Gefen GTB-UHD600-18S-RT sends one 4K HDMI source to eight displays at once, at up to 4K DCI 60Hz 4:4:4 with HDR. Each output has its own scaler, so a 1080p screen gets a picture it can show while the others stay at 4K. It cascades to hundreds of displays and offers IP control, Smart CEC and EDID management for signage and large installations. -
NEWGefen
Gefen GF-AVIP-MC AV over IP Matrix Controller with KVM & Video Wall ControlSKU: Gefen GF-AVIP-MC
£2,447.10 £2,719.00Ex. VAT ✓ Save £271.90The Gefen GF-AVIP-MC is the central controller for a Gefen AV over IP system. It finds every compatible transmitter and receiver on the network and manages routing, matrix switching, video walls and up to 256 presets through one drag-and-drop web interface. It can be controlled over RS-232, Telnet, UDP or IR, or locally through its HDMI output and USB ports, and has trigger inputs for button panels. -
NEW£1,215.00Ex. VATThe SEADA Genesis 1G G1G-HDMI is a KVM over IP transceiver that carries 4K60 4:4:4 HDMI video and USB keyboard and mouse control across a standard Gigabit Ethernet network. A rear-panel switch sets each unit as a transmitter or a receiver. End-to-end KVM latency as low as 4 ms makes the G1G-HDMI well suited to control rooms and multi-workstation operator desks. -
NEW£2,708.33Ex. VATThe SEADA SD-MV-CM1602 is a 4K60 16x2 multiviewer and UHD video switcher that brings up to sixteen HDMI and DisplayPort sources together on a single display. Two simultaneous HDMI 2.0 outputs, free layouts on a 15 x 15 grid, seamless window switching and eight recallable presets make it a flexible choice for control rooms, broadcast monitoring, conferencing and security installations.
